Product Recommendation Matrix

Biogas Analyzer

•

  Gasboard-3200Plus

  Handheld Biogas Analyzer

  Gasboard-3200Plus Handheld Biogas Analyzer is designed to measure CH4, CO2, O2, H2S and optional H2, CO gases in biogas. This model is powered by lithium battery and with very compact design that very suitable for remote use onsite. It is modular sensor design ensures easy on operation and maintenance.It is very suitable for research purpose or daily inspection in different biogas applications such as Anaerobic Digestion, landfill, wastewater treatment, biomethane and so on.

  More
•

  Gasboard-3500UV

  Online UV-DOAS Biogas Monitoring System

  Gasboard-3500UV is the new generation biogas monitoring system that primarily designed based on UV-DOAS technology to measure H2S concentration precisely before and after H2S scrubber, and extended with modular sensor of CH4 (NDIR), CO2(NDIR) and O2 (ECD) to realize online continuously monitoring of biogas quality without purging cycle required.The 2 sampling channels design before and after scrubber enable it to provide an ideal solution to guarantee the H2S scrubber efficiency, protect downstream expensive equipment from the damage of overload H2S, minimize the investment for users and optimize the biogas monitoring process.

  More
•

  Gasboard-3500

  Online Biogas Analysis System

  EX-proof Online Biogas Analysis System Gasboard-3500 is an online monitoring system with wall-mounted ex-proof enclosure, mainly used for continuous measuring CH4, CO2, O2, H2S in different biogas, landfill gas, biomethane gas applications. Modular sensor design enables easy maintenance. With flexible gas conditioning system, it could be used in tropical /cold regions. It consists of three parts: pretreatment unit, control unit and analysis unit. It can implement sampling, drainage and other operations automatically and achieve 24 hours unattended working conditions.

  More
•

  Gasboard-9060

  Online Biogas Monitoring System

  Gasboard-9060 Online Biogas Monitoring System is designed to measure the concentration of CH4 ,CO2 ,H2S and O2 continuously in different biogas applications. It consists of four parts: Gas sampling and conditioning unit, Gas analysis unit, Control unit for auto drain and Data transmission, multiple sampling points is supported.

  More
•

  Gasboard-3200

  Online Infrared Biogas Analyzer

  Gasboard-3200 online biogas analyzer is a rack type analyzer with standard 3U enclosure which is very convenient for system integration or bench top use in lab. It's designed to measure CH4, CO2, H2S and O2 concentration simultaneously in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes.

  More
•

  Gasboard-3200UV

  Online UV Biogas Analyzer

  Gasboard-3200UV is the new generation rack type biogas analyzer that primarily designed based on UV-DOAS technology to measure H2S concentration precisely before and after H2S scrubber, and extended with modular sensor of CH4(NDIR), CO2(NDIR) and O2(ECD) to realize online continuously monitoring of biogas quality without purging cycle required.The dual measurement ranges of UV-H2S detector makes it very suitable to be used to monitor H2S concentration difference before and after scrubber. It provides an ideal solution to guarantee the H2S scrubber efficiency, protect downstream expensive equipment from the damage of overload H2S, minimize the investment for users and optimize the biogas monitoring process.

  More
•

  Gasboard-3200L

  Portable Infrared Biogas Analyzer

  Gasboard-3200L portable biogas analyzer is designed to measure CH4, CO2, H2S and O2 concentration simultaneously in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes, based on NDIR technology for CH4, CO2 gases, ECD technology for H2S and O2 gases. This model can be powered by lithium battery ensure easy carrying among different measuring points.

  More

Biogas Flowmeter

•

  BF-3000

  Ultrasonic Biogas Flowmeter

  BF-3000 Ultrasonic Biogas Flowmeter can be commonly used with various industrial gas streams(biogas, natural gas, air, etc.), but with special design to enable it withstand the wet and corrosive gas conditions in biogas application.

  More
•

  BF-3000B

  Ultrasonic Biogas Flowmeter

  BF-3000B Ultrasonic Biogas Flowmeter is based on technology combination of pressure differential and ultrasonic transit time differential measurement method. With a bypass structure in the flow meter, gas flow in the main line is inferred by measuring the gas flow in the small bypass line, it can effectively solve the problems such as moisture condensation and core parts corrosion, improve the measurement accuracy and extend life span.

  More
•

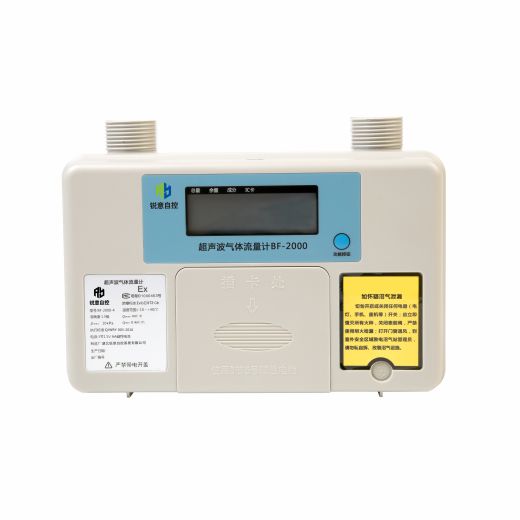

  BF-2000

  Residential Gas Meter

  BF-2000 Residential Gas Meter is a pre-paid type gas meter embedded with Cubic’s ultrasonic gas module which have self-owned intellectual property. It is suitable to be used in community biogas projects that supplying biogas to families directly for cooking, and some other small scale biogas applications.

  More
