portable MAP analyzer

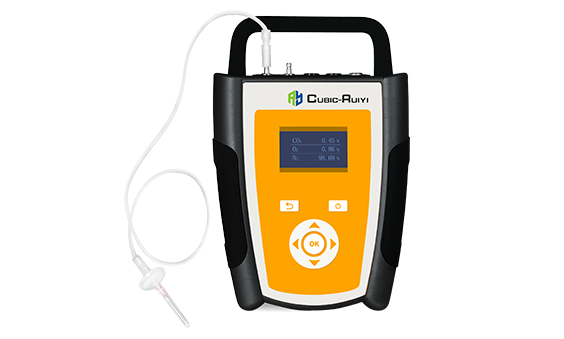

Portable Headspace Analyzer (MAP)

Gasboard-3022Plus

Gasboard-3022Plus is an advanced portable gas analyzer for headspace gas testing in modified atmosphere packaging (MAP). It is developed based on non-dispersive infrared (NDIR) technology and Zirconia sensor technology. The CO2 measurement adopts NDIR technology, which measures CO2 level with high-accuracy readings and ensures a lifetime more than 10 years. And O2 measurement is based on Zirconia sensor technology, which not only evaluates the volume of O2 accurately but also enables long lifetime of 5 years and fast response time less than 7 seconds.

For the convenience of application, Gasboard-3022Plus is designed with a high-quality 5-inch color touchscreen and combined with intuitive user-friendly Ul interface. Gasboard-3022Plus supports scanning camera, Wi-Fi communication, Android operating system, and reliable data storage with large storage capacity, which ensures easy and smart data management. Additionally, Gasboard-3022Plus' highly sensitive flow monitoring and alarm design prevents erroneous data operation. Combined with a large capability lithium battery and fast charging ability, Gasboard-3022Plus can also provide longer usage time of more than 2500 measurements.

Due to its high accuracy, easy operation, intelligent data management and cost-effective benefits, Gasboard-3022Plus can be applied for gas analysis and control in a variety of modified atmosphere packaging (MAP) production lines.

Show More

Features

  • Advanced Gas Sensing Technology: Non-dispersive infrared (NDIR) and Zirconia sensor technologies ensure high-precision CO2 and O2 measurements.
  • Fast Response Time: Response time down to 7s.
  • Low Sample Volume: Minimum sample volume of 5mL.
  • Flow Monitoring with Alarm:  Prevents errors caused by improper sampling.
  • Long Battery Life: Powered by a 7500mAh/3.7V battery, supporting over 4 hours of continuous operation.
  • Smart Documentation: Built-in 5MP camera for quick barcode-based data entry.
  • Large Data Storage: Stores up to 100,000 data records; expandable via SD card.
  • Wireless Printing: Compatible with mini printers for instant output.
  • Smart Connectivity: Android operating system and Wi-Fi data transmission for convenient operation.
  • Needle Protection: Equipped with needle protection/storage device.

Specifications

Components O2: Zirconia; CO2: NDIR
Range O2: 0-96%vol; CO2: 0-100%vol
Accuracy

O2: ±(0.25%+2% reading);

CO2: ≤20%vol: ±2.0%vol; >20%vol: ±3.0%vol

Resolution 0.01%
Sample Volume 5ml minimum
Sampling Time 7s minimum
Communication
2.4GHz Wi-Fi, USB
Data Storage 100000 measurement data, expandable via SD card
Camera 5MP
Printer (Optional) Wireless mini printer
Battery Rechargeable lithium battery, 7500mAh 3.7V
Working Condition
0℃~40℃; 10%RH~90%RH (no condensing)
Storage Condition -20℃~60℃; 5%RH~90%RH (no condensing)
Dimension
L104*W187.5*H72 (mm)

【Accessories】

① 100 pcs membranes

② 10 pcs air needles

③ 10 pcs water filters

④ Different power plug options
