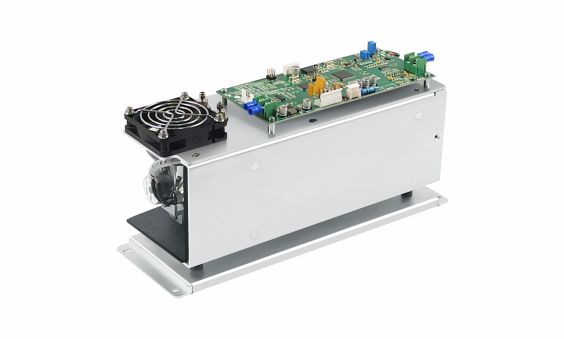

Micro Flow NDIR Gas Bench

Gasboard-2105

Gasboard-2105 Micro flow NDIR gas bench adopt independent intellectual property rights and international PCT patent (PCT/CN2018100767) dual‐chamber sensor technology. The gas chamber is composed of the measured gas chamber and the reference gas chamber. The Gasboard‐2105 serials uses a dual chamber structure and special filters to solve environmental temperature instability and aging of electronic components. With improved accuracy, stability and anti‐interference, it is suitable for low range vehicle exhaust emission detection and environmental monitoring.

PCT/CN NO.: 2018/100767

US Authorization No.: US11079322

Product Inquiry

Send Email to Us

Features

One sensor bench measure one gas
Patent (PCT/CN2018100767) dual‐chamber sensor with measured gas and the reference gas for high accuracy
Except SO2 and NO, it also can measure CO, CO2,CH4 and SF6
Automatic temperature compensation
Built-in moisture adjustment device, eliminate the interference of H2O
Measurement range can be customized
Good stability and long life

Specifications

Range	CO: 0~500/1000/2000/5000ppm, CO2: 0~500/5000ppm SO2: 0~200/5000ppm, NO: 0~200/5000ppm, CH4: 0~1000/5000ppm PS: Components and ranges are can be customized
Accuracy	≤±1%F.S.
Repeatability	±1%
zero/span drift	＜2%F.S.
Output	RS232
Power supply	Mainboard power supply：±12VDC/24W，5VDC/10W Constant temperature heating power supply：100~240VAC，80W

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
