Online Biogas Analysis System
Home > Product > Process Gas Analyzer

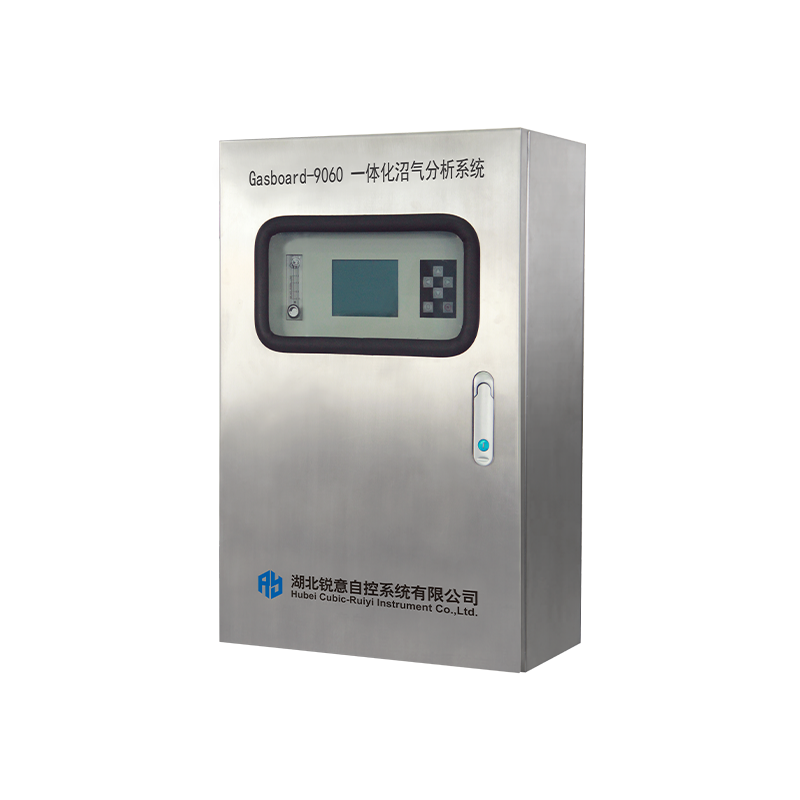

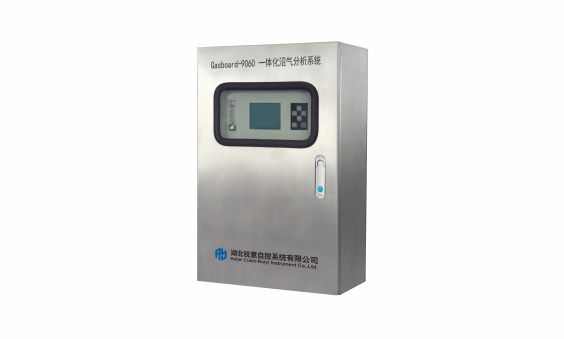

Online Biogas Monitoring System

Gasboard-9060
Gasboard-9060 Online Biogas Monitoring System is designed to measure the concentration of CH4 ,CO2 ,H2S and O2 continuously in different biogas applications. It consists of four parts: Gas sampling and conditioning unit, Gas analysis unit, Control unit for auto drain and Data transmission, multiple sampling points is supported. Automatically proceed sampling, analyzing, drainage and so on process. Realized unattended operation 7*24hrs biogas monitoring.
Segment: Process Gas Analyzer
Division: Biogas
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Wall-mounted stainless steel cabinet for easy installation and high corrosion resistance.
  • Integrated gas sampling & conditioning devices, flexible for different site conditions
  • Modular sensor design ensures simple maintenance
  • Independent sensor and signal processing for each gas component
  • Inbuilt air purging module to prolong H2S sensor lifetime
  • Thermostatic design for sensors to reduce temperature fluctuation influence
  • Support up to 4 sampling channels

Specifications

Component
CH4,  CO2, O2, H2S
Technology
NDIR, ECD
Measuring range

CH4: 0-100%;

CO2: 0-50%;

O2: 0-25%;

H2S: 0-9999 ppm

Resolution

CH4: 0.01%;

CO2: 0.01%;

O2: 0.01%;

H2S: 1ppm

Precision

CH4, CO2 ≤ ± 2% FS;

O2, H2S ≤ ± 3% FS

Repeatability

CH4, CO2 ≤ ± 2% FS;

O2, H2S ≤ 2% FS

Dimensions
H700 x W450 x D220 mm
Material
stainless steel, plate thick 2 mm
Installation parts
4 brackets for wall mounting
Operating temperature range
-15°C to +45°C
Operating humidity range
0-95% RH non condensing
Environment pressure range
80-120 kPa

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
