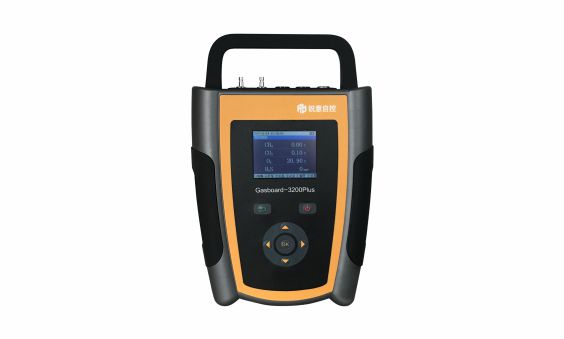

Handheld Biogas Analyzer

Gasboard-3200Plus

Gasboard-3200Plus Handheld Biogas Analyzer is designed to measure CH4, CO2, O2, H2S and optional H2, CO gases in biogas. This model is powered by lithium battery with very compact design that is very suitable for remote use onsite. It is modular sensor design ensures easy on operation and maintenance.It is very suitable for research purpose or daily inspection in different biogas applications such as Anaerobic Digestion, landfill, wastewater treatment, biomethane and so on.

Segment: Process Gas Analyzer
Division: Biogas

Product Inquiry

Send Email to Us

Features

Modular NDIR and ECD sensors design, easy for maintenance.
Compact design with weight of 1.2Kg only, easy carrying among different sites.
Auto temperature compensation to guarantee precision.
Precision filters to remove moisture and dust in sample gas for analyzer protection.
Rechargeable Lithium battery supports up to 8 hours continuous working.
In-built memory for up to 2560 units of records, easy to download the data to PC.

Specifications

Standard Measurement	CH4, CO2, H2S, O2
Optional measurement	CO, H2 (optional)
Technology	CH4, CO2(NDIR), H2S, O2, CO, H2(ECD)
Range	CH4: 0-100%, CO2: 0-50%, H2S: 0-9999ppm, O2: 0-25%, CO: 0-2000ppm, H2:0-2000ppm (Note: measurement range can be customized.)
Resolution	CH4, CO2, O2: 0.01%, H2S, CO, H2: 1ppm
Precision	CO2, CH4: <2%FS H2S, O2, CO, H2: <3%FS
Inlet gas flow	0.7-1.2 L/min
Inlet gas pressure	2kPa-50kPa
Sampling gas condition	no dust, no water, no tar
Response time(T90)	<10s (NDIR)
Display	High-resolution colored 3.2-inch
Communication interace	USB port, bluetooth 4.0
Lithium battery pack	Rechargeable
Work temperature	-10—40°C
Relative humidity	<95% non condensing
Ambient pressure	70-120kPa
Dimension	29519662mm (LWH)
Weight	1.2kgs

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
