Online infrared biogas analyzer
Home > Product > Process Gas Analyzer

Online Infrared Biogas Analyzer

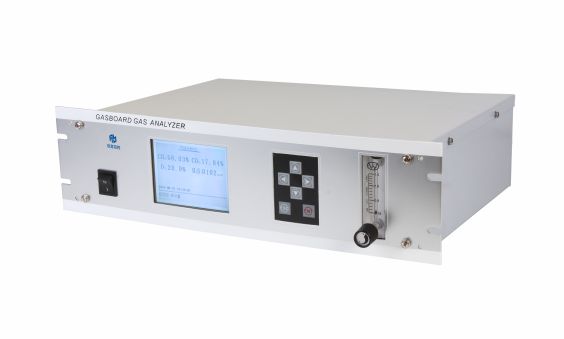

Gasboard-3200
Gasboard-3200 online biogas analyzer is a rack type analyzer with standard 3U enclosure which is very convenient for system integration or bench top use in lab. It's designed to measure CH4, CO2, H2S and O2 concentration simultaneously in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes.
Segment: Process Gas Analyzer
Division: Biogas
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Standard 3U rack type enclosure, easy for system integration
  • Modular sensor design ensures simple maintenance
  • Independent sensor and signal processing for each gas component
  • Optional H2S purging module to extend H2S sensor lifetime
  • Thermostatic design for sensors to reduce temperature fluctuation influence
  • Automatic zeroing with air reduces drift
  • Data logging software available to save real time data into external PC, convenient for research use

Specifications

Measurement
CH4, CO2, H2S, O2
Technology
CH4, CO2, (NDIR), H2S, O2(ECD)
Range

CH4: 0-100%,

CO2: 0-50%,

H2S: 0-9999ppm,

O2: 0-25%

(Note： measurement range can be customized.)

Resolution

CH4, CO2, O2: 0.01%;

H2S: 1ppm

Precision

CH4,CO2, : ≤1%FS

H2S,O2: ≤2%FS

Repeatability
CH4, H2S, CO2,O2≤1%
Gas flow
0.7-1.2 L/min
Inlet pressure
2kPa-50kPa
Sampling gas condition
no dust, no water, no tar
Response time(T90)
<10s (NDIR)
Communication interface
RS-232
Power supply
110V/220V±44V AC 50Hz±1Hz
Work temperature
0-50°C
Relative humidity
≤95% non condensing
Ambient pressure
86-108kPa
Output
4-20mA
Dimension
400*485*132mm (L*W*H)
Weight
18kgs

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
