Portable biogas analyzer
Home > Product > Process Gas Analyzer

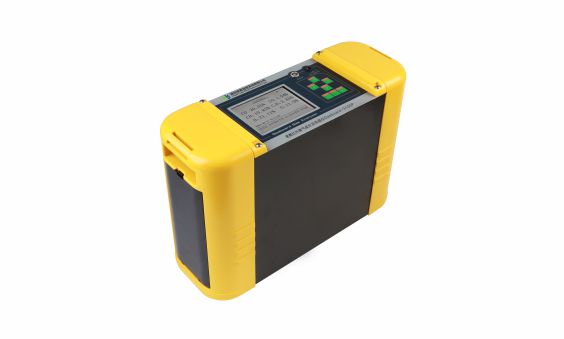

Portable Infrared Biogas Analyzer

Gasboard-3200L
Gasboard-3200L portable biogas analyzer is designed to measure CH4, CO2, H2S and O2 concentration simultaneously in different biogas applications, like landfill, water treatment, CDM projects, anaerobic digestion and other fermentation processes, based on NDIR technology for CH4, CO2 gases, ECD technology for H2S and O2 gases. This model can be powered by lithium battery ensure easy carrying among different measuring points.
Segment: Process Gas Analyzer
Division: Biogas
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Modular NDIR and ECD sensors design, easy for maintenance.
  • Thermostatic design for sensors to reduce temperature fluctuation influence
  • Light-weight design for easy carrying among different sites.
  • Rechargeable Lithium battery supports up to 8 hours continuous working.
  • In-built memory for up to 2560 units of records, easy to download the data to PC.
  • Optional gas conditioning device for analyzer protection.

Specifications

Measurement
CH4, CO2, H2S, O2
Technology

CH4, CO2 (NDIR)，

H2S, O2 (ECD)

Range

CH4: 0-100%,

CO2: 0-50%,

H2S: 0-9999ppm,

O2: 0-25%

(Note: measurement range can be customized.)

Resolution

CH4, CO2, O2: 0.01%,

H2S: 1ppm

Precision

C02, CH4: ≤1%FS

H2S, O2: ≤2%FS

Repeatability
CH4, H2S, CO2, O2 ≤1%
Gas flow
0.7-1.2 L/min
Inlet pressure
2kPa-50kPa
Sampling gas condition
no dust, no water, no tar
Response time(T90)
<10s (NDIR)
Communication interface
RS-232
Power supply
built-in rechargeable lithium battery
Work temperature
0-50°C
Relative humidity
<95% non condensing
Ambient pressure
86-108kPa
Dimension
295*196*62mm (L*W*H)
Weight
5 kgs

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
