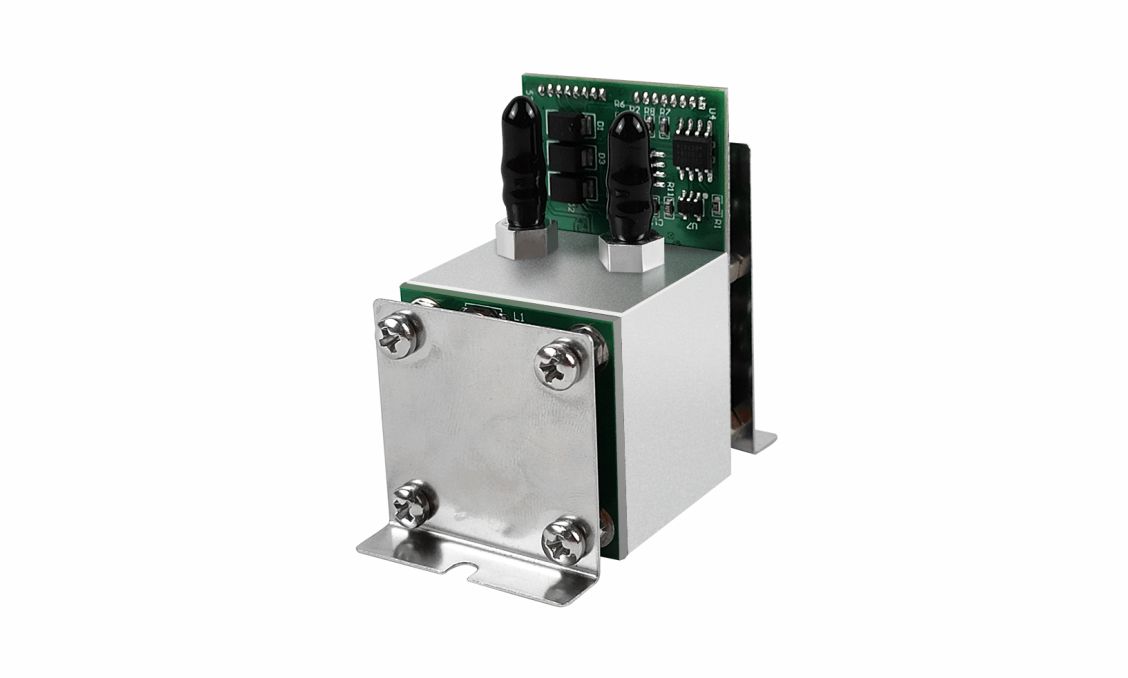

Dual Beam NDIR Gas Bench

Gasboard-2005

The Gasboard-2005 series NDIR gas bench is suitable for vehicle emission or exhaust gas measurement, which adopts the high-precision dual-beam non-dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights, based on the characteristics of the specific wavelength absorption of gas molecules to measure the light absorption rate of each gas then detect the concentration. Cubic Instruments has many years of experience in OEM/ODM supporting of Fortune 500 companies, which can meet the different needs of customer system development.

Segment: Flue Gas Analyzer

Division: OEM Gas Bench

Product Inquiry

Send Email to Us

Features

One sensor bench measure one gas
High precision dual-beam NDIR technology
Measurement high concentration CO,CO2,CH4
Measurement range can be customized
No moisture & vibration interference
Modular design for easy integration & maintenance

Specifications

Range	CO: Min Range: 0-2%; Max Range: 0-100% CO2: Min Range: 0-500ppm; Max Range: 0-100% CH4: Min Range: 0-1%; Max Range: 0-100% (Measurement range can be customized)
Resolution	1ppm/0.01%
Precision	±2%FS
Stability	＜1%FS
Repeatability	＜1%FS
Zero Drift	＜2%FS/24h
Response Time	＜30s
Warm‐up Time	30min
Output	RS 232 (Standard)
