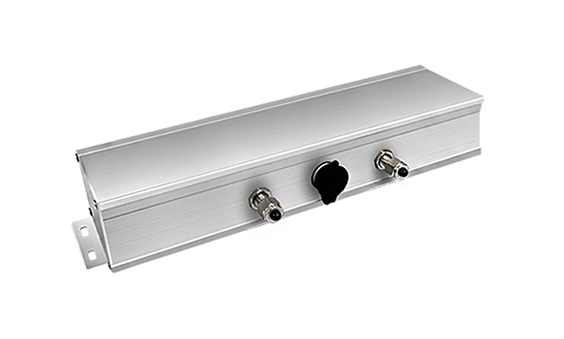

Optical NDIR Multi-Gas Sensor


Gasboard-2006 is a high performance infrared multi-channel sensor bench developed by Cubic-Ruiyi based on NDIR technology.It adopts a high performance detector and a special process gas chamber to detect gases under constant temperature. With characteristics of high precision, small drift and fast response, Gasboard-2006 is capable of simultaneously measuring the concentration of CO and CO2 (and CH4 optional) without cross-interference. The feature of easy integration with existing systems and reduced calibration/maintenance requirements make it ideal for accurate detection of multiple components in complex gas environments.

Segment: Flue Gas Analyzer
Division: OEM Gas Bench
  • Measure CO, CO2 (and CH4) simultaneously in one gas sensor bench.
  • Low CO measurement range down to 0-1000ppm.
  • Excellent performances and high accuracy with linear error less than 1% F.S.
  • Constant temperature design ensures high precision and stability by reducing the influence from ambient temperature.
  • Advanced mathematical algorithm identifies optimal gas absorption peak and compensates for interference from other gases, improving measurement accuracy.
  • Modular design for easy integration
Measurement Gas CO, CO2(CH4 optional on request)
Range/Resolution CO: 0-1000ppm, 0.1ppm

CO2: 0-20% Vol., 0.01% Vol.

* CH4 measurement on request

LOD CO: 0.5%F.S.
CO2: 0.1%F.S.
Linear Error ≤±1%F.S.
Response Time ≤8s@0.7L/min
Repeatability ≤1%
Stability ≤±2%F.S./24h
Constant Temperature 50℃
Warm-up time <30min
Ambient Temperature (5~40)℃
Relative Humidity 0%~95%rel (non-condensing)
Inlet Pressure (86~115)KPa
Flow Rate 0.2L/min~1L/min
Communication RS485/RS232 Modbus RTU
Power Supply 12VDC±0.2V/4A
Power consumption <800mW/Max. 36W during heating
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
