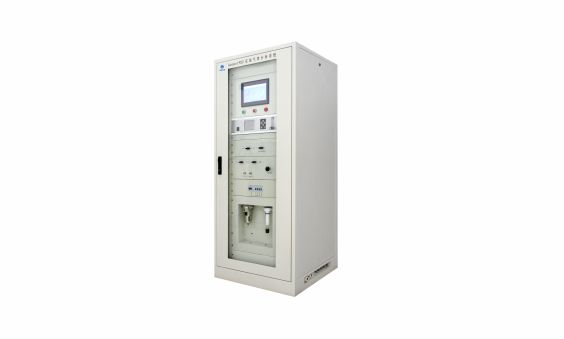

Gasboard-9021
Infrared Syngas Analysis System
Gasboard-9021 is a continuously monitoring system which consist of sampling unit, pretreatment unit, gas analysis unit and PLC controlling unit, it can provide unattended real time monitoring of CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination for various applications

EU Authorization No.: EP2796856

US Authorization No.: US9857323

Features
  • PCT approved product based on IR & TCD technologies to measure syngas composition. (EU and US Authorization No.: EP2796856 , US9857323)
  • Replacement to gas chromatography, mass spectrometry.
  • Patented NDIR and TCD technology, including ECD technology for reliable measurement of eight gases.
  • High-selectivity CH4 gas sensor, no interference from other hydrocarbons.
  • Fully compensated H2 sensor, no interference from CO, CO2, CH4 based on intelligent correction
  • Integrated with gas sampling &conditioning part, analysis part and controlling part, suitable for continuous unattended real time monitoring.
Specifications
Gas Measured

CO, CO2 , CH4, CnHm, C2H2, C2H4 by NDIR sensor ;

H2 by thermal conductivity detector

O2 by electrochemical sensor (Paramagnetic O2 sensor on request)

Measurement Range

CO/CO2/CH4/H2:(0~100)%

O2:(0~25)%

C2H2/C2H4/CnHm:(0~10)%(optional)

Accuracy

CO/CO2/CH4/C2H2/C2H4/CnHm:±1%F.S.

O2/H2:±2%F.S.

Resolution
0.01%
Repeatability
≤1%F.S.
Response Time
T90<15s (NDIR)
Optimal flow Rate
(0.7~1.2) L/min
Inlet Gas Pressure
(2~50) kPa
Gas Condition
No Tar, No Dust and No Water
Output Communication
4-20mA
Power supply
AC220V,50Hz
Weight
250kg
Size
1800mm(L) *700mm(W) *600mm(H)

For more details, please feel free to contact our sales: info@gasanalyzer.com.cn.
