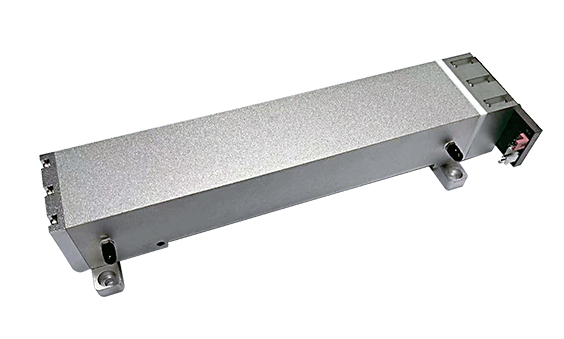

NDUV Ultra-low NO2 Gas bench

Gasboard-2305

Gasboard-2305 adopts non-dispersive ultraviolet absorption (NDUV) technology and highly stable pulsed LED UV source. The UV beam is absorbed & attenuated when passes through the gas chamber. The measured gas concentration is calculated according to Lambert-Beer law. The UV absorption method gas sensor is newly launched by Cubic Instruments, which is different from the UV differential method, measure the NO2 concentration with high accuracy and strong anti-interference. It is suitable for environmental monitoring.

Segment: Flue Gas Analyzer
Division: OEM Gas Bench

Product Inquiry

Send Email to Us

Features

Low range detection of NO2 to 200ppm.
Measure NO2 directly without NOx converter
Suitable for match micro-flow NDIR to measure NO for NOX measurement.
No moisture & vibration interference
Advanced high stability pulsed LED UV light source
Modular design for easy integration & maintenance

Specifications

Range	0‐200ppm,500ppm (Measurement range can be customized.)
Resolution	1ppm
Precision	±2%FS
Stability	＜1%FS
Repeatability	＜1%FS
Zero Drift	＜2%FS/24h
Response time	＜10s
Warm‐up	30min
Output	RS 232/RS 485 and 4‐20mA
Operation temperature (Indoor)	15‐35℃
Operation Current	＜1A
Relative Humidity	≤ 85%
Dimensions	1557043.9mm (LengthWidthHigh)

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
