Gasboard-3500

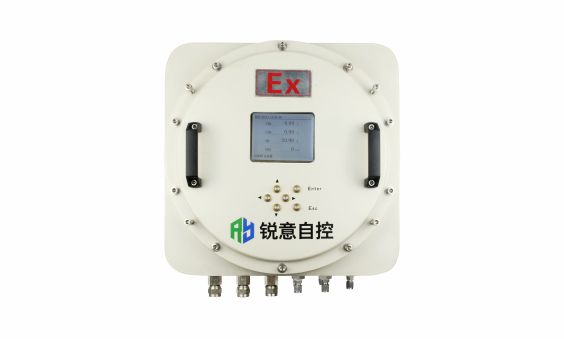

Online Infrared Gas Analysis System Gasboard-3500 is an online monitoring system with wall-mounted ex-proof enclosure, mainly used for continuous measurement for different combustible fuel gases, such as biogas, syngas, natural gas and so on. Composed by various sensors, Gasboard-3500 has a very flexible configuration and can measure CH4, CnHm, CO, CO2, H2, O2, H2S, Calorific value, Wobbe index, etc. It is widely used in different industrial hazardous area, such as  biogas plant, landfill plant, biomethane, natural gas city gate, LNG transportation and so on. Besides combustible gas quality check, it can also be used for calorific value adjustment of natural gas or LNG vaporized gas, H2 & NG gas blending, optimization of air-fuel ratio for turbines and furnaces and other applications. Modular sensor design enables the feature of easy maintenance. With flexible gas conditioning system, it can implement sampling, drainage and other operations automatically and achieve 24 hours unattended monitoring.
Segment: Process Gas Analyzer
Division: Biogas
Show More

Features

  • High-speed response and continuous measurement based on NDIR and other technologies
  • Real time calculation of calorific value and wobbe index
  • No carrier gas needed, replacement to gas chromatography, mass spectrometry
  • Modular sensor design ensures simple maintenance
  • EX-Proof design with CNEX certification (ExdⅡCT6 Gb)
  • Optional air purging module can prolong electrochemical sensor lifetime
  • Thermostatic design for sensors to reduce temperature fluctuation influence
  • All parts contacting with sample gas are made of high corrosion resistant material
  • Auto diagnosis function to check sensor status quickly
  • Capable of measuring multiple sampling channels

Specifications

Gas
CH4, CnHm, CO, CO2, H2, O2, H2S, Calorific value*
*4 sensors for maximum
Technology
NDIR, TCD, ECD
Measure Range

CO/CO2/CH4/CnHm: (0~100)%
O2: (0~25)%
H2S: (0~9999)ppm
*Measurement range can be customized

Resolution

CH4, CnHm, CO, CO2, H2, O2: 0.01%; H2S: 1ppm

Accuracy CH4, CnHm, CO, CO2: ± 2% FS; H2, O2, H2S:  ± 3% FS
Repeatability
±1%
Response Time(T90)
<15s (NDIR)
Warm-up
800s
Output
RS232 & 4-20mA
Power Supply
110~230VAC 50/60Hz
Dimensions 
H400 x W400 x D250 mm
Material
Cast aluminium, IP 65
Ex-Proof Grade 
ExdllCT6
lnlet Gas Flow
0.7~1.2L/min
lnlet Gas Pressure
2-50kPa
Ambient Temperature
0℃ to 50℃
Relative Humidity
5~85%RH non-condensing
Ambient Pressure
86~108 kPa

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
