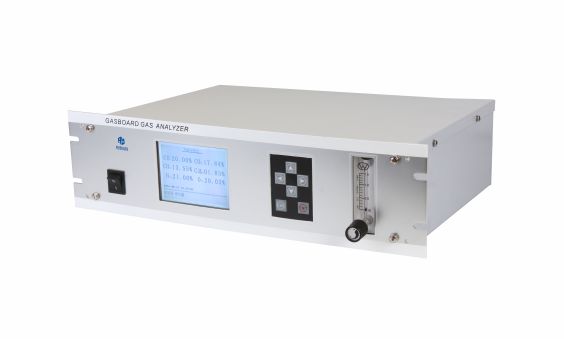

Online Infrared Syngas Analyzer

Gasboard-3100

Gasboard-3100 is a stationary syngas analyzer based on NDIR ,TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination and calculate heat value.

EU Authorization No.: EP2796856

US Authorization No.: US9857323

Product Inquiry

Send Email to Us

Features

PCT approved product based on IR & TCD technologies to measure syngas composition. (EU and US Authorization No.: EP2796856 , US9857323).
Replacement to gas chromatography, mass spectrometry.
Patented NDIR and TCD technology, including ECD technology for reliable measurement of eight gases.
High-selectivity CH4 gas sensor, no interference from other hydrocarbons.
Fully compensated H2 sensor, no interference from CO, CO2, CH4 based on intelligent correction.
Integrated RS232/RS485 digital output with 4-20mA analog output.
Built-in auto-zero pump, efficiently decrease the calibration frequency.
Modular sensor design , easy maintenance.

Specifications

Gas	CO/CO2/CH4/H2/O2/C2H2/C2H4/CnHm*/Heat Value
Measurment Principle	CO/CO2/CH4/C2H2/C2H4/CnHm：NDIR H2：TCD O2：ECD
Measurment Range	CO/CO2/CH4/H2:(0~100)% O2：(0~25)% C2H2/C2H4/CnHm：(0~10)%（optional）
Accuracy	CO/CO2/CH4/C2H2/C2H4/CnHm：±1%F.S. O2/H2：±2%F.S.
Resolution	0.01%
Repeatability	≤1%
Response time	T90＜15s (NDIR)
Optimal flow Rate	(0.7~1.2) L/min
Inlet Gas Pressure	(2~50) kPa
Gas Condition	No Tar, No Dust and No Water
Communication	RS-485/RS-232, (4-20) mA
Power Supply	100~240VAC, 100W
Display	LCD Display

Note：
CnHm is the sum of hydrocarbon gases except methane

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
