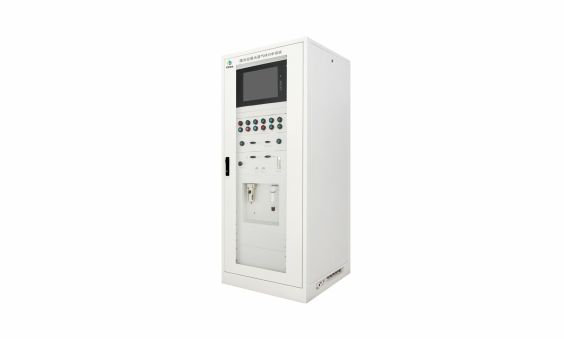

LRGA-6000 is an advanced analysis system mainly composed by the core analysis unit LRGA-3100, gas sampling & conditioning system, and data processing system. It works based on the principle of laser Raman scattering, which enhances, collects, processes and identifies the characteristic Raman scattering spectra of the gas to be measured and quantifies the content, and can provide online measurement for various gases simultaneously with the shortest response time in seconds. With rugged system design, it works properly for industrial applications with harsh gas conditions and provides reliable measurement data support for process monitoring and optimization.
Applications
|
- Natural gas - Natural gas cracking - Shale gas - Mud logging - Petrochemical - Coal chemical industry - Coal to glycol - Raw coal gas - Inlet of pretreatment - Conversion gas composition - Ferrous metallurgy |
- Argon blowing in steel ladle - Mixed gas of blast furnace, coke furnace and converter furnace - Coke oven gas - Heating furnace calorific value monitoring - Coking - Biomass gasification - Tire cracking - Pyrolysis/gasification - Rubber gasifier - Gasification reactor |
| Applications | Measured Gases |
| Chemicals: Coal Gasifier |
CO、CO2、H2、N2、O2、CH4、C2H2、C2H4、C2H6、C3H8、H2S… |
| Chemicals: Coal to Natural Gas | CO、CO2、H2、N2、O2、CH4、C2H6、C3H8、iC4、nC4、H2S、H2O… |
| Chemicals: Amonia Synthesis/Urea/Fertilizer | CO、CO2、H2、N2、O2、CH4… |
| Iron & Steel | CO、CO2、CH4、C2H2、C2H4、C2H6、C3H8、O2、H2、N2、H2S… |
| Oil & Gas |
CH4、CO、CO2、H2S、C2H6、C2H4、C3H6、C3H8、H2… |
| Aluminum | CO、CO2… |
| Environment | H2、N2、O2、CO、CO2、CH4、C2H2、C2H4、C3H6、C3H8、H2S… |
| Power | CO、CO2、H2S、CH4、H2O… |
| Cement |
CO、CO2、H2O、H2S… |
| Specifications |
|
| Measurement Components | H2, N2, O2, CO, CO2, CH4, C2H2, C2H4, C2H6, C3H6, C3H8, H2S, Calorific value, Wobbe index, etc. |
| Measurement Range |
0-100% (can be customized based on actual application condition) |
| Accuracy | ±2%F.S. |
| Response Time | <60s (Configurable) |
| Repeatability | 2% |
| Working Temperature |
10℃～35℃ |
| Power Supply | 100~240VAC, 50~60Hz |
