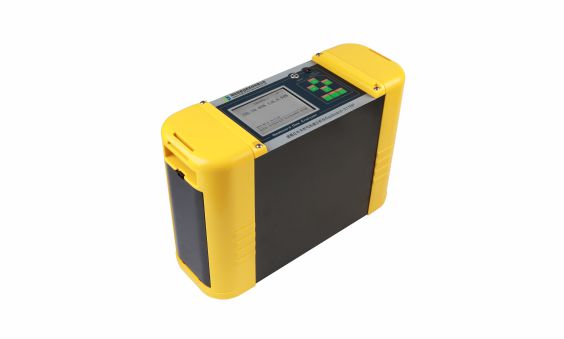

Portable Infrared Natural Gas Analyzer

Gasboard-3110P

Gasboard-3110P is a portable natural gas analyzer based on patented NDIR technology, it can simultaneously measure CO2, CH4 ,CnHm, calculate heat value and Wobbe Index.

EU Authorization No.: EP2796856

US Authorization No.: US9857323

Product Inquiry

Send Email to Us

Features

PCT approved product based on IR & TCD technologies to measure syngas composition. (EU and US Authorization No.: EP2796856 , US9857323).
Replacement to gas chromatography, mass spectrometry.
Patented NDIR technology for reliable measurement of CO2, CH4, CnHm.
Real time calculation of calorific value and wobbe index.
High-selectivity CH4 gas sensor, no interference from CnHm.
Built-in battery for multi-site measurement.
Data logging included.
Built-in sampling pump, flow meter and filters.

Specifications

Gas	CH4, CO2, CnHm*, Heat Value
Measurment Principle	NDIR
Measurment Range	CH4, CO2(0~100)%； CnHm：(0~10)%
Accuracy	±1%F.S.
Resolution	0.01%
Repeatability	T90＜10s (NDIR)
Response time	(0.7~1.2) L/min
Optimal flow Rate	(2~50) kPa
Inlet Gas Pressure	No Tar, No Dust and No Water
Communication	RS-485/RS-232
Power Supply	Internal rechargeable Li-ion battery, External 12.6V charger
Display	LCD Display

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.

【Applications】

LNG/CNG gas quality check
Biomethane
Furnace fuel check
Combustion process optimization
Gas blending control
