In-situ Laser Process Gas Analyzer

GasTDL-3100

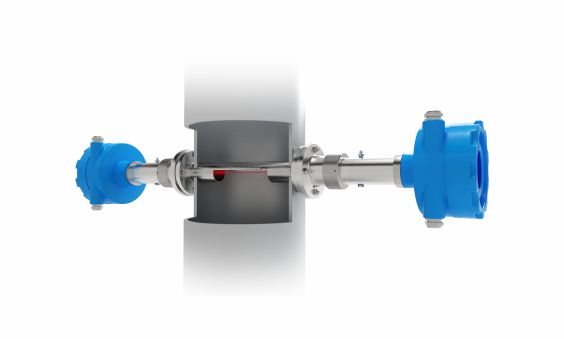

GasTDL-3100 is an in-situ cross-stack designed laser gas analyzer based on highly selective optical measuring principle of tunable diode laser (TDL) absorption spectroscopy, it can provide real time process gas measurement under harsh conditions.
Segment: Process Gas Analyzer
Division: Syngas
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • High selectivity, no cross-interference.
  • In-situ, no sampling or conditioning required.
  • Fast response, T90≤4s.
  • Reliable in harsh measurement environments.
  • Explosion-proof, Exd II CT6 certified.
  • No moving parts, long lifetime.
  • Measurement of CO, CO2, CH4 is available on request.

Specifications

Measurement Component
O2, CO, CO2, CH4*
Measurement Principle
TDLAS
Measurement Range

O2: (0~5)%VOL(100% can be customized）

CO: (0~100)%VOL

CO2: (0~100)%VOL

CH4: (0~20)%VOL

Precision
≤±1%F.S.
Repeatability
≤±1%F.S.
Drift
≤±1%F.S.
Resolution
0.01% VOL
Response time
T 90 ≤4s
Ex-proof Grade
Exd II CT6
Installation Method
In-situ Installation
Working Temperature
(-20~+60)℃
Power Supply
24V DC, 24W
Purge Gas Source
(0.3~ 0.8) Mpa Industrial N2
Communication
RS485,RS232
Analog signal
2 channels 4~20mA output3 relay outputs
Note: Each analyzer can only measure the concentration of one single gas
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.

Related Product

Gasboard-3100P
Gasboard-3100P
Portable Infrared Syngas Analyzer
Gasboard-3100P is a portable syngas analyzer based on NDIR ,TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination and calculate heat value.
More
Gasboard-3100
Gasboard-3100
Online Infrared Syngas Analyzer
Gasboard-3100 is a stationary syngas analyzer based on NDIR ,TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination and calculate heat value.
More
Gasboard-9021
Gasboard-9021
Infrared Syngas Analysis System
Gasboard-9021 is a continuously monitoring system which consist of sampling unit, pretreatment unit, gas analysis unit and PLC controlling unit, it can provide unattended real time monitoring of CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination for various applications
More

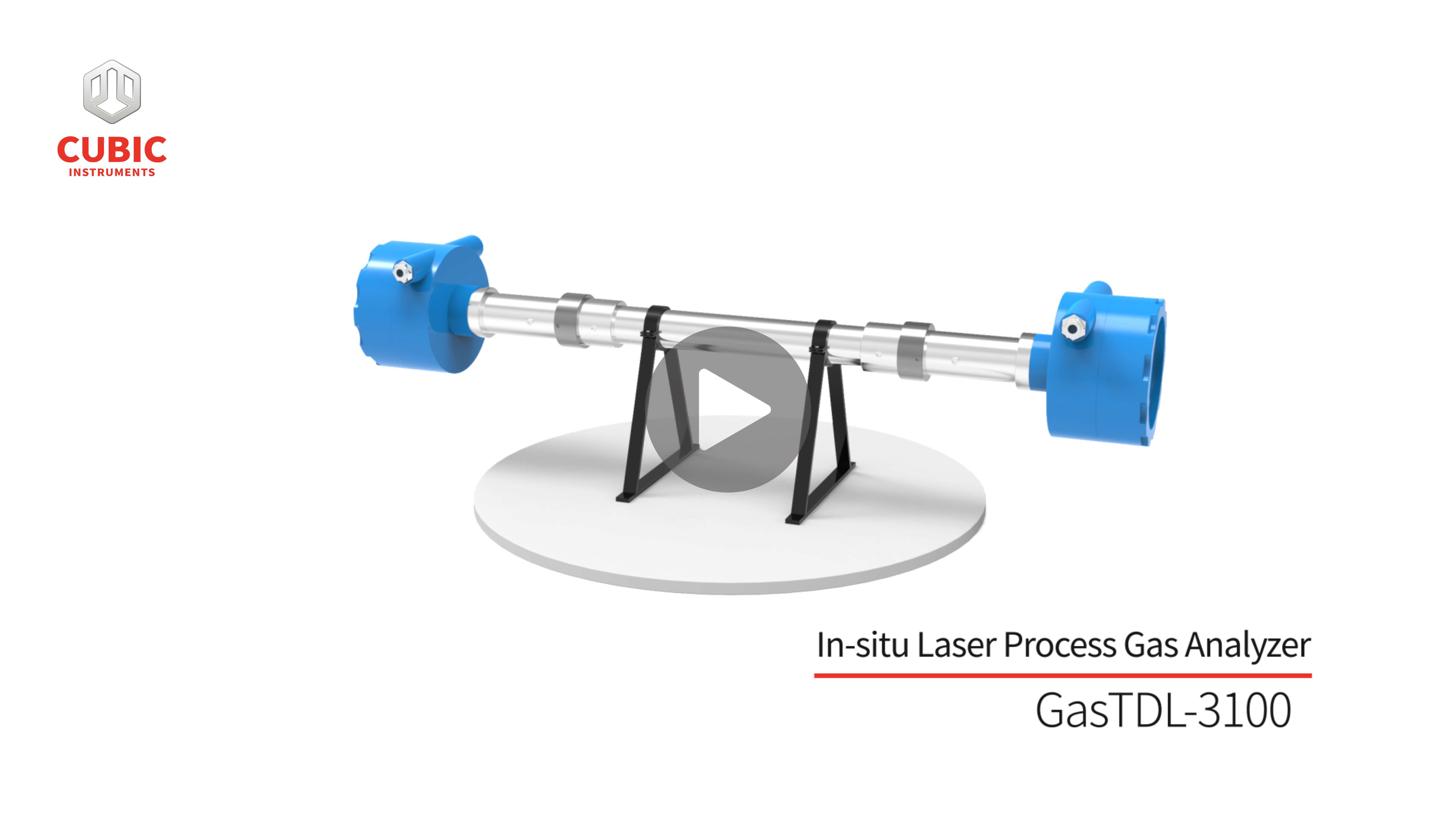

Video
