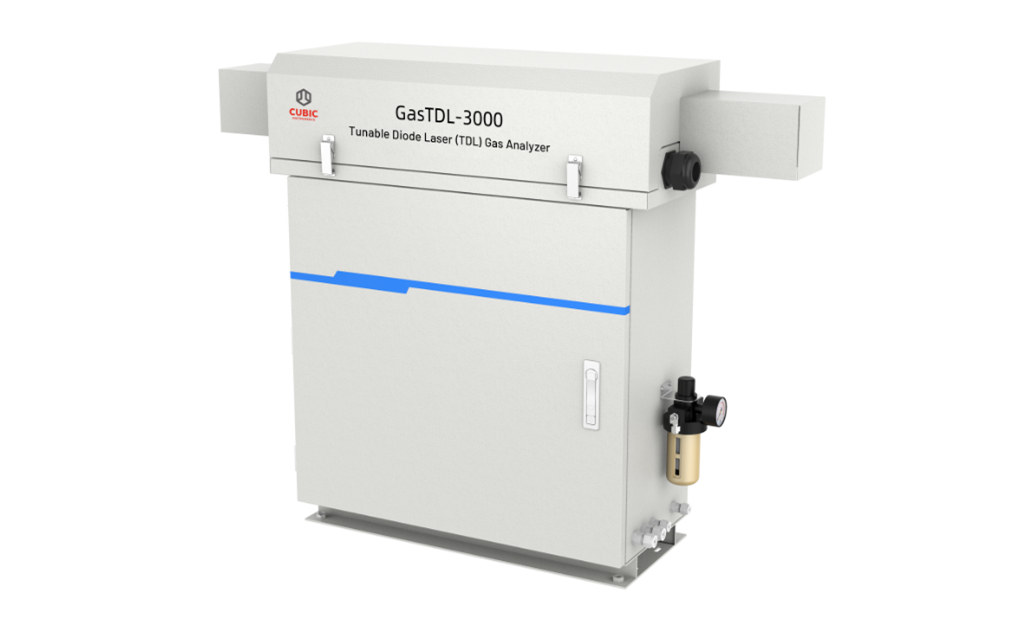

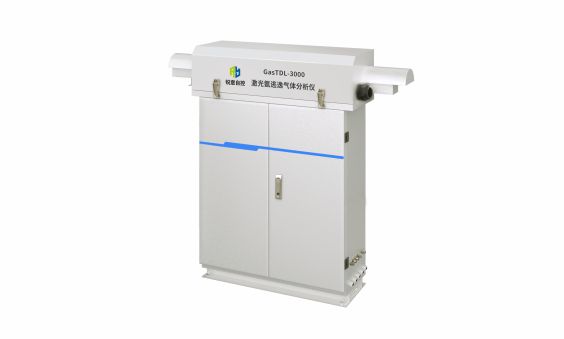

TDLAS Gas Analyzer GasTDL-3000

GasTDL-3000

TDLAS Gas Analyzer GasTDL-3000 adopts tunable diode laser absorption spectroscopy technology (TDLAS), which is suitable for online monitoring of NH3, HCL and HF gas concentration. The system adopts high temperature heat tracing extraction technology, which effectively reduces gas condensation loss. It accurately reflects the changes of escaped ammonia concentration,HCL and HF concentration in real time, and provide reliable data support for environmental monitoring.

Segment: Flue Gas Analyzer
Division: Continuous Emission Monitoring System (CEMS)
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • No cross interference: use TDLAS technology and adopt the laser wavelength consistent with the measured gas, which is not subject to cross-interference by other gases, and it is easy to detect specific components in the mixed gas.
  • High-precision: the resonance absorption concentration of a specific wavelength is monitored by gas with high precision.
  • Fast response: the response speed is fast, compared with other methods (electrochemistry, semiconductor infrared, etc.) detection, the response time is greatly shortened.
  • Ultra-low range measurement: using multiple reflection gas chamber, low detection limit.
  • Effectively avoid NH3 condensation loss: the gas flow path is heated at high temperatures throughout the entire process, and low-adsorption materials and processing techniques are used to effectively avoid NH3,HCL and HFcondensation loss.
  • Extractive measurement: not affected by dust, temperature, and pressure fluctuations in the flue.
  • Easy installation: not restricted by on-site installation conditions, widely used in different fields.
  • Low maintenance: no need for tedious maintenance, easy to apply and calibrate, no need for professional operators.
  • Good environmental adaptability: suitable for harsh environments with high temperature, high humidity, strong corrosion, and dust.

Specifications

Performance Parameter
Measurement Components
NH3, HCL and HF
Measurement Principle
 		TDLAS
Measurement Range

NH3:

Min: 0-20ppm, Max: 0-10000ppm

HCL, HF:

Min: 0-100ppm, Max: 0-10000ppm

Resolution
 0.1ppm
Precision
 		±2% F.S.
Response Time
≤20s

Zero Drift

≤±2%FS

Working Parameter
Working Temperature
 		(-10~+55) °C
Working Power Supply
 		220V AC, 50Hz

Backflush Gas

Clean and Dry compressed gas without oil

Warm-up Time 30min

Heating Temperature

190°C
Interface Signal
Communication
 		RS485, RS232
Output Mode

4-20mA, Max load 900Ω,relay output

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
