Flue Gas Analyzer

•

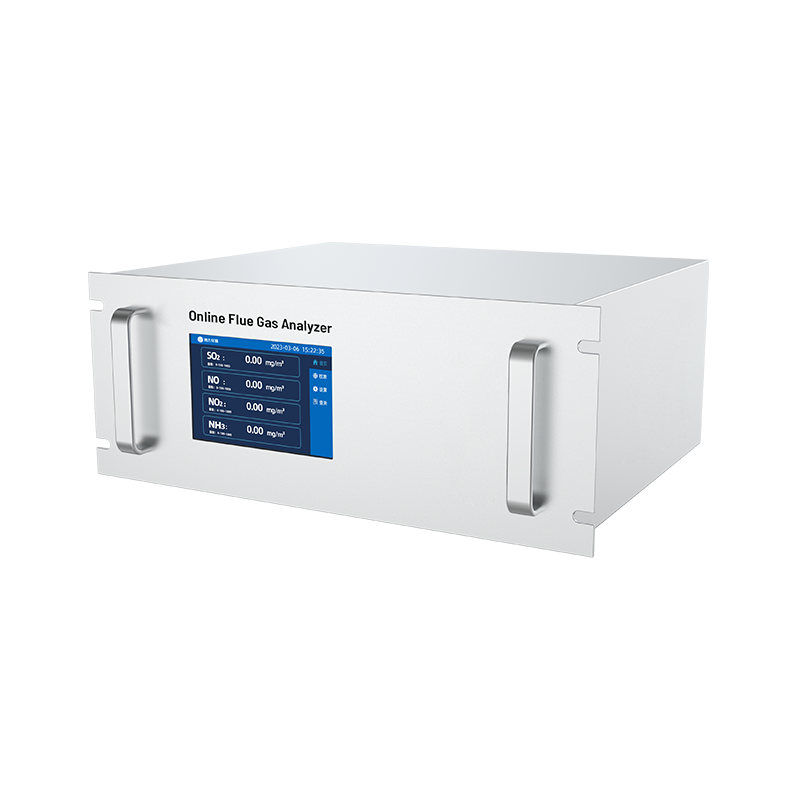

  Gasboard-3600UV

  Online Flue Gas Analyzer

  The high-temperature UV flue gas analyzer adopted ultraviolet differential (UV-DOAS) technology and combined with Hot & Wet sampling technology to achieve direct measurement of high-temperature raw flue gas. It can simultaneously measure the concentration of SO2, NO, NO2 (other gases can be extended on request) in the emission gas from stationary sources of air pollution. Compared with the traditional Cold & Dry method analyzers, it requirs no condensing equipment and can effectively avoid the condensation loss of SO2 and other sour gas substances, and reach the higher measurement accuracy. The raw flue gas can be analyzed through a simple flow path, so Gasboard-3600UV can effectively reduce the failure rate of the instrument and save maintenance cost.

  More
•

  Gasboard-7900

  Ultrasonic Flue Gas Flowmeter

  Gasboard-7900 is a high temperature ultrasonic flowmeter independently developed by Cubic Instruments. Based on the TOF (Time of Flight) principle of ultrasonic wave, one or more pairs of ultrasonic transmitting and receiving devices are installed in the direction of the upstream and upstream of the medium respectively, and the gas flow rate in the flue is calculated through the time difference of ultrasonic wave transmission, and the volume flow rate of the flue gas is calculated according to the cross-sectional area of the flue duct. This flowmeter adopts the non-contact measurement method, which can effectively solve the measurement difficulties such as unstable flow field and uneven flow velocity distribution in the pipeline, and can maintain continuous real-time stable monitoring in the harsh environment of high temperature, high humidity and high dust during the flue gas discharge process.

  More
•

  Gasboard-3000Plus

  Online Infrared Flue Gas Analyzer

  Gasboard 3000Plus is designed with world-leading micro-flow infrared sensor, is able to measure continuously simultaneously concentration of CO,CO2,SO2,NO,especially for lower range measurement. It is an ideal solution for monitoring in fields of boiler, power plant, combustion efficiency monitoring for various industrial furnaces or refuse incinerator, process and security monitoring.

  More
•

  Gasboard-3000UV

  Online UV DOAS Flue Gas Analyzer

  Gasboard 3000UV is designed based on ultraviolet differential optical absorption spectroscopy (UV-DOAS) technology. Compared with the Luft NDIR and Micro-flow NDIR flue gas analyzer, it can measure ultra-low range (0-50mg/m3) of SO2 and NO, which is widely used in industrial emission monitoring to ensure the compliance with local emission regulation.

  More
•

  Gasboard-3000GHG

  Greenhouse Gas Emission Analyzer

  Cubic Instruments (a wholly-owned subsidiary of Cubic sensor) independently developed Gasboard 3000GHG greenhouse gas emission analyzer. Adoptting the independent intellectual property rights of Micro flow NDIR dual-chamber sensor technology (international PCT patent PCT/CN2018100767), Cubic Instruments portable greenhouse gas emission analyzer Gasboard 3000GHG can accurately measure the greenhouse gases concentration change of CO2, CH4, N2O etc and CO gas in flue gas at the same time. The range can be as low as 200ppm, the accuracy can be as high as 1%F.S.. Besides it has strong resistance to gas cross interference and low drift. At the same time, for high concentration of CO2 and high range CO measurement, NDIR gas sensor technology sensor modules with intellectual property rights are optional for flexible configuration. Good stability, small size and low cost.

  More
•

  Gasboard-3800GHG

  Portable Greenhouse Gas Emission Analyzer

  Cubic Instruments portable greenhouse gas emission analyzer Gasboard 3800GHG can accurately measure the greenhouse gases concentration change of CO2, CH4, N2O etc and CO gas in flue gas at the same time.

  More
•

  Gasboard-3800P

  Portable Infrared Flue Gas Analyzer

  It is portable type and used to measure concentration of SO2, NO, CO, CO2 and O2 from stack or boiler emission gases, in which SO2, NO, CO and CO2 are measured by micro-flow infrared sensors and O2 by electrochemical sensor, with optional gas temperature, pressure, velocity etc, calculating combustion efficiency, lambda, etc.

  More
•

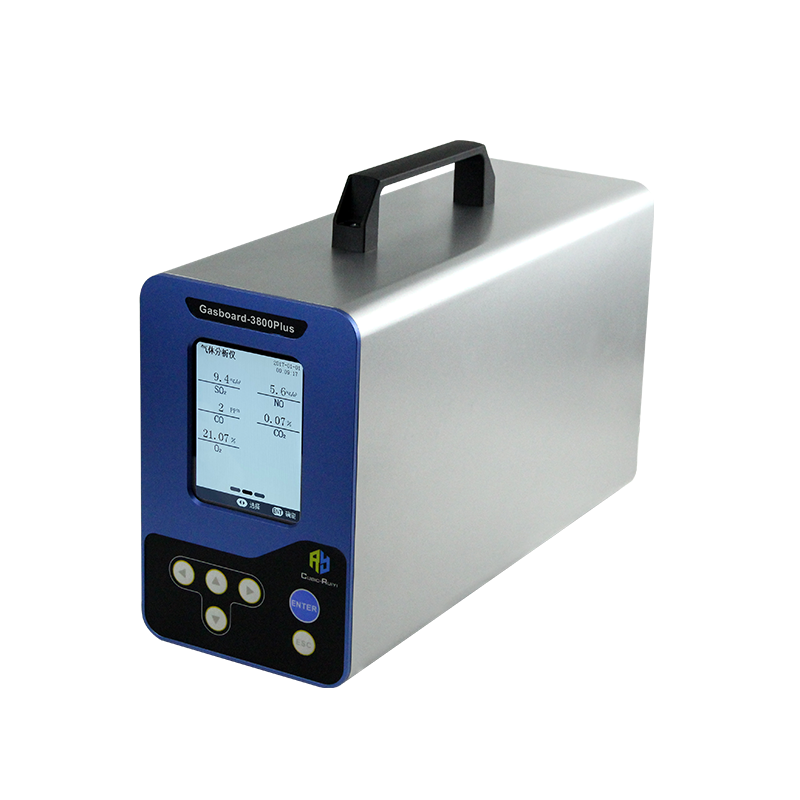

  Gasboard-3800Plus

  Portable Infrared Flue Gas Analyzer

  Gasboard 3800Plus is new portable type to measure concentration of SO2, NO, CO, CO2 and O2 from stack or boiler emission gases, in which SO2, NO, CO are measured by unique dual beam micro-flow infrared sensors and O2 is measured by long life time electrochemical sensor.

  More
•

  Gasboard-3800UV

  Portable UV Flue Gas Analyzer

  Gasboard 3800UV is new portable type adopts the UV DOAS, NDIR and electrochemical technology to measure concentration of SO2, NO, CO, CO2, HC and O2 from stack or boiler emission gases.

  More
•

  Gasboard-3400P

  Portable Infrared Combustion Efficiency Analyzer

  It is portable type, it is powered by Li- ion battery and can be used without AC power supply. It is used for measurement of the concentration of CO ,CO2 and O2 in sample gases simultaneously, calculating combustion efficiency and Lambda. It is based on the single source two beams non-dispersion infrared (NDIR) method for CO ,CO2,fuel cell method (ECD) for O2.

  More
•

  Gasboard-3000P

  Portable Flue Gas Analyzer

  It is economical portable type which mainly based on electrochemical sensors to measure the volume concentration of CO,CO2 ,O2 ,SO2 ,NO in flue gas and to figure out excess air coefficient. This product has high precision, small volume, it is convenient to carry, simple to operate and it is extensively applied in steel, chemical, energy conservation monitoring, energy efficiency evaluation and other fields.

  More
•

  Gasboard-3050

  Flue Gas Oxygen & Humidity Analyzer

  Gasboard-3050 the Humidity & Oxygen Analyzer uses the principle of ceramic zirconia to measure the oxygen content and the content of oxygen and water (gaseous) mixed gas. According to the functional relationship between the oxygen content, the content of oxygen and water (gas) mixture and the sensor output signal, the humidity value and oxygen concentration value are calculated, and the humidity and oxygen concentration signals are output, which can provide an accurate basis for environmental humidity monitoring.Gasboard-3050 features high accuracy, strong stability and long service life. It is a type of removable oxygen & humidity analyser, providing an ideal flue gas monitoring solution used in the condition of high temperature and humidity. It meets the technical requirements of online continuous flue gas emission monitoring system in regulation .

  More

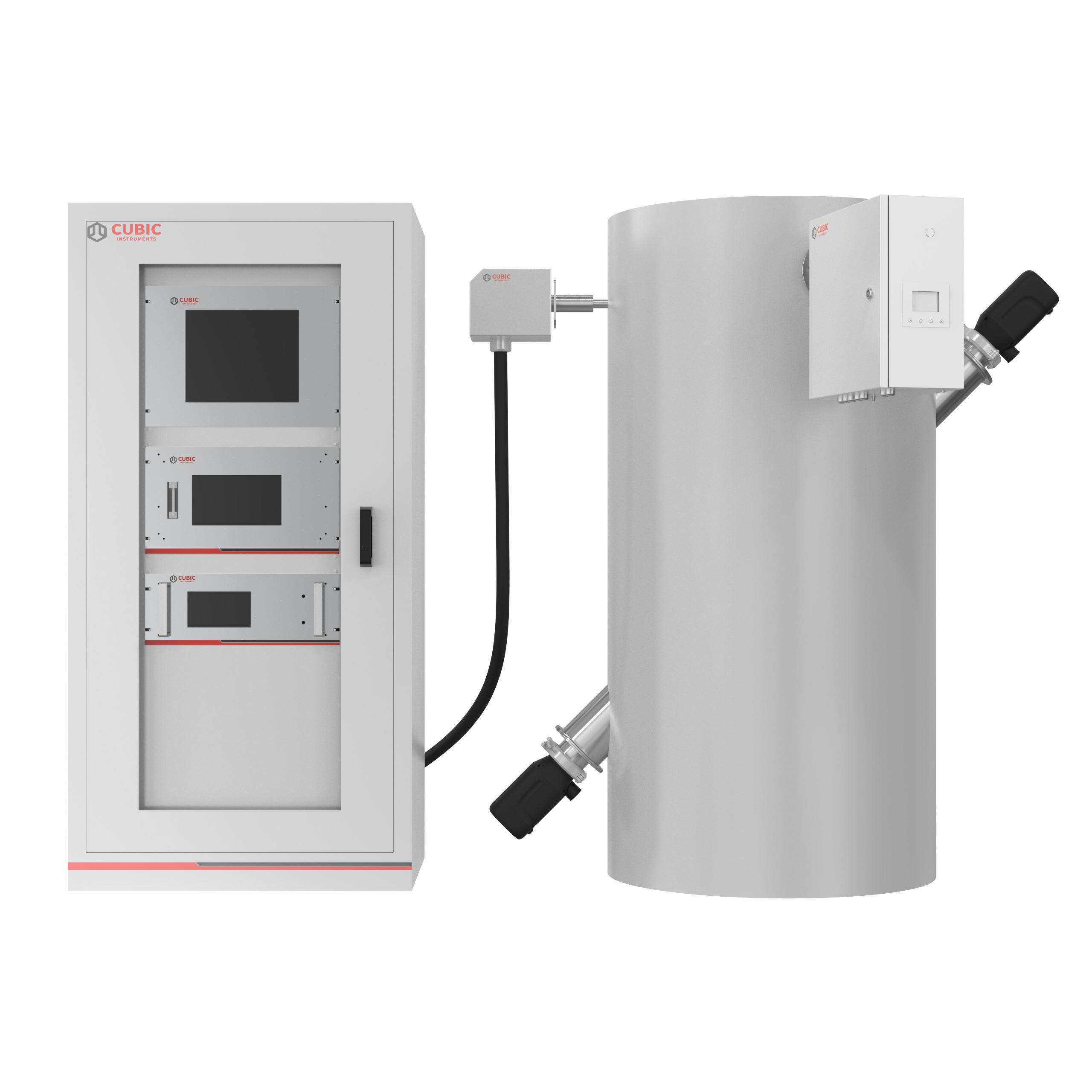

Continuous Emission Monitoring System (CEMS)

•

  Gasboard-9050

  Continuous Emission Monitoring System (CEMS)

  The continuous emission monitoring system is based on innovative micro-flow NDIR technology to measure the SO2, NO, CO, CO2 and O2 (ECD or paramagnetic) five gases at the same time. Eliminate the ambient’s temperature influence on measurement value and less interference of water vapor on SO2 and NO measurement. It has excellent prolonged stability and less cross interference.

  More
•

  Gasboard-9085

  Continuous Emissions Monitoring System for Marine Exhaust Gas

  In order to protect the environment, the emission gases from the maritime industry are subject to international and national laws and regulation. All of the ship owners should establish compliance with environmental requirements defined by the international Maritime organization (IMO).

  More
•

  GasTDL-3000

  TDLAS Gas Analyzer GasTDL-3000

  Laser Ammonia Slip Gas Analyzer GasTDL-3000 adopts tunable diode laser absorption spectroscopy technology (TDLAS), which is suitable for online monitoring of ammonia gas concentration at the outlet of denitration process. The system adopts high temperature heat tracing extraction technology, which effectively reduces gas condensation loss. It accurately reflects the changes of escaped ammonia concentration in real time, and provide reliable data support for environmental monitoring.

  More
•

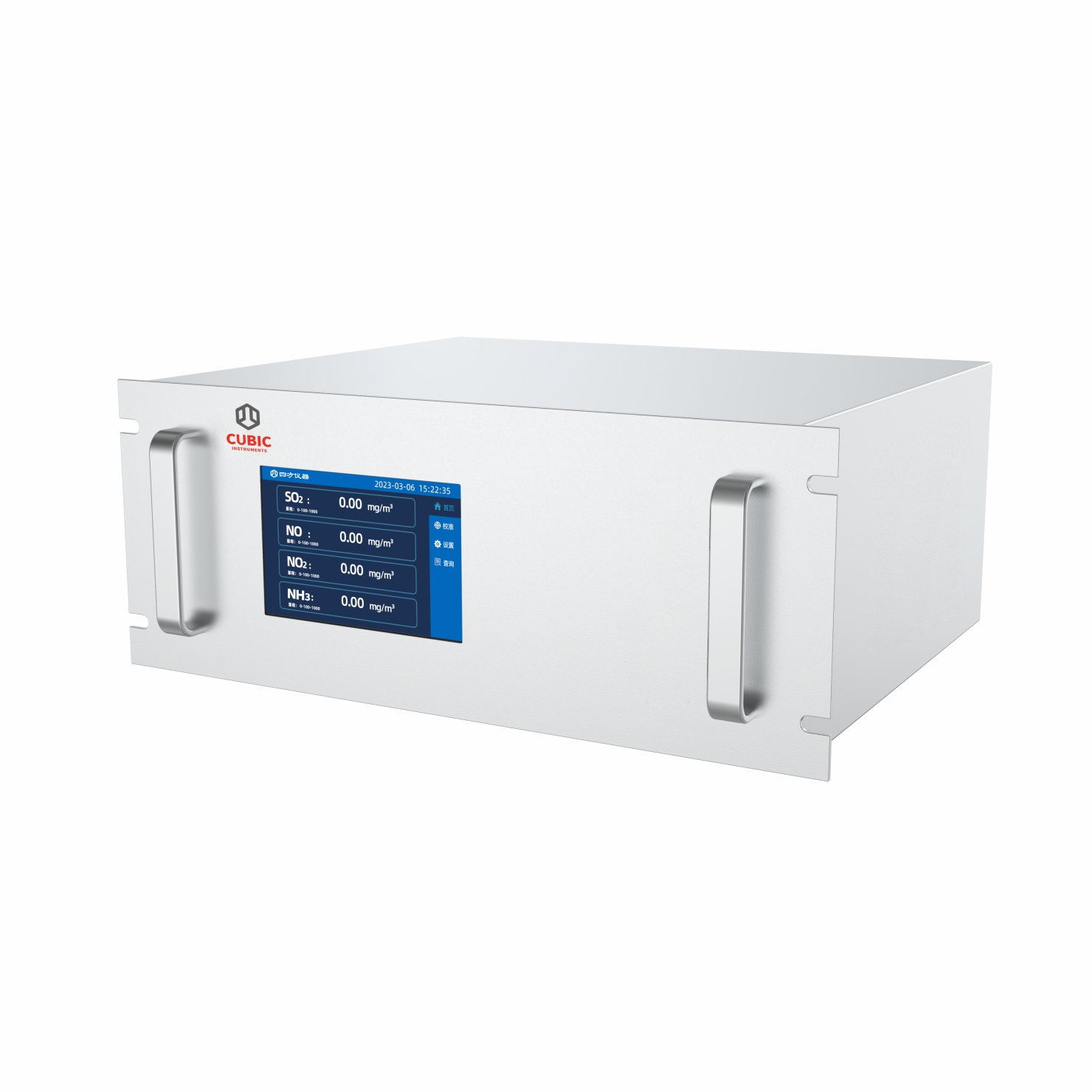

  Gasboard-9070

  High Temperature UV Flue Gas Monitoring System

  High Temperature UV Flue Gas Monitoring System Gasboard-9070 is based on advanced UV-DOAS gas analysis technology, which can simultaneously measure the concentration of SO2, NO, NH3 and other gases. It adopts multiple reflection chamber to reach a lower limit of detection. The system adopts high temperature tracing on whole sampling circuit to ensure high measurement accuracy, that can be widely used to monitor the flue gas from industrial stacks or stationary pollution source before and after desulfurization and denitrification, and accurately reflect the conditions of ammonia escaping.

  More

OEM Gas Bench

•

  Gasboard-2601

  GFC Infrared Gas Sensor Bench

  Gasboard-2601 gas filter correlation (GFC) infrared gas sensor is a high-performance gas analysis sensor independently developed by Cubic-ruiyi (a wholly-owned subsidiary of Cubic Sensor and Instrument Co.,Ltd). The gas sensor bench is based on the principle of non-dispersive infrared (NDIR) technology and adopts gas filter correlation (GFC) infrared absorption technology. By comparing the absorption degree of sample gas and reference gas, the concentration of measured gas is calculated according to the absorption relationship of Lambert-Beer law, and the detection error caused by gas interference is effectively eliminated through the reference gas chamber. The product adopts reliable and stable light source, high-performance detector and precision signal processing circuit, with high measurement accuracy, strong anti-interference ability and long-term stability. It is especially suitable for situations where gas concentration is low, absorption is weak and long-term monitoring is required. The product adopts

  More
•

  Gasboard-2520

  TDLAS Gas Sensor Module

  The Gasboard-2520 series is a high-performance gas analysis sensor module independently developed by Cubic Instruments (Wuhan)Ltd. It is based on tunable diode laser (TDL) absorption spectroscopy and uses high-performance probes and special process gas chamber. It has the characteristics of high precision, high sensitivity, strong anti-interference ability, long life and stable performance. The product adopts modular design and is easy to install. The product can be calibrated through the RS-232/485 communication interface. The constant temperature design effectively avoids the impact of temperature changes on the sensor and can work stably in harsh working conditions and complex gas environments.

  More
•

  Gasboard-2006

  Optical NDIR Multi-Gas Sensor

  Gasboard-2006 is a high performance infrared gas sensor bench developed by Cubic Instruments based on NDIR technology. It adopts high performance detector and special process gas chamber to detect gases under constant temperature, with characteristics of high precision, small drift and fast response.

  More
•

  Gasboard-2005

  Dual Beam NDIR Gas Bench

  The Gasboard-2005 series NDIR gas bench is suitable for vehicle emission or exhaust gas measurement, which adopts the high-precision dual-beam non-dispersive infrared (NDIR) gas analysis technology with independent intellectual property rights, based on the characteristics of the specific wavelength absorption of gas molecules to measure the light absorption rate of each gas then detect the concentration. Cubic Instruments has many years of experience in OEM/ODM supporting of Fortune 500 companies, which can meet the different needs of customer system development.

  More
•

  Gasboard-2105

  Micro Flow NDIR Gas Bench

  Gasboard 2105 Micro flow NDIR gas bench adopt independent intellectual property rights and international PCT patent (PCT/CN2018100767) dual‐chamber sensor technology. The gas chamber is composed of the measured gas chamber and the reference gas chamber. The Gasboard‐2100 serials uses a dual chamber structure and special filters to solve environmental temperature instability and aging of electronic components. With improved accuracy, stability and anti‐interference, it is suitable for low range vehicle exhaust emission detection and environmental monitoring.

  More
•

  Gasboard-2205

  UV-DOAS Gas Bench

  Gasboard-2200 series UV-DOAS gas bench adopt high-precision ultraviolet differential absorption spectroscopy gas analysis technology. With flashing xenon lamp as light source, when the light is transmitted in the measured gas, the intensity of the differential absorption characteristic produced is different which is used to derive the gas concentration & gas type Using a unique algorithm, the long path is returned to the gas chamber multiple times to get high sensitivity & strong absorption signal, at the same time it support long service life and good stability. It can accurately measure the gas concentration of SO2, NO and NO2. The measurement range is less than 100mg/m3, which can completely fulfill the needs of the ultra-low emission monitoring market.

  More
•

  Gasboard-2305

  NDUV Ultra-low NO2 Gas bench

  Gasboard-2305 adopts non-dispersive ultraviolet absorption (NDUV) technology and highly stable pulsed LED UV source. The UV beam is absorbed & attenuated when passes through the gas chamber. The measured gas concentration is calculated according to Lambert-Beer law. The UV absorption method gas sensor is newly launched by Cubic Instruments, which is different from the UV differential method, measure the NO2 concentration with high accuracy and strong anti-interference. It is suitable for environmental monitoring.

  More
