ultrasonic flowmeter module
Home > Product > Gas Flowmeter

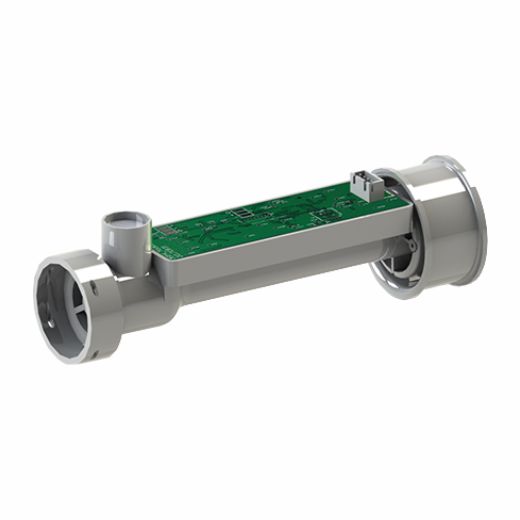

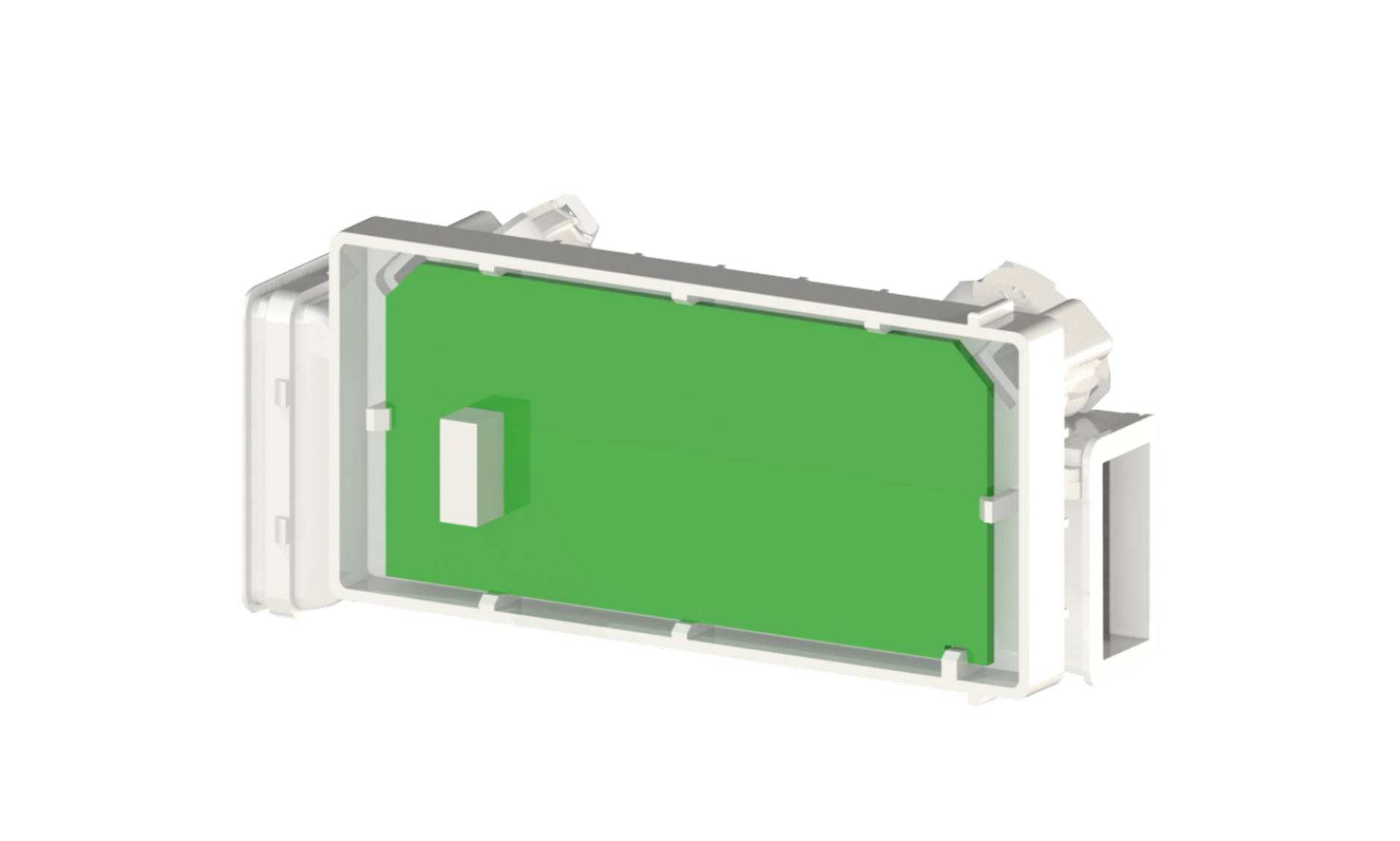

Ultrasonic Gas Meter Module

USM Module Series
Ultrasonic Gas Meter Module G2.5M-G4M uses a pair of ultrasonic gas transducers that installed oppositely at upstream and downstream, based on TOF (Time of Speed) principle to measure flow velocity of gas medium, with built-in temperature and smart software algorithm, consumed gas volume can be calculated and displayed on meter’s screen.
PCI patented L shape gas flow channel, the effective distance between two transducers are longer, which facilitates the measurement accuracy, it's also anti-contamination that guarantees long-term stability of accuracy.
Segment: Gas Flowmeter
Division: Ultrasonic Gas Meter
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Stable flow field distribution;
  • High sensitivity and accuracy with intelligent software algorithm for Air,100% CH4 and different natural gases;
  • Low pressure loss due to absence of obstructing objects within flow path;
  • Low power consumption;
  • UART/TTL interface with direct output for connection;
  • Small footprint which permit compact designs;
  • Compliant to OIML R137 and EN14236 class 1.5.

Specifications

Measurement Range

USM-G2.5M: 0.025-4 m3/h, 0.88-141.26 ft3/h

USM-G4M:  0.04~6 m3/h ,1.41~ 211.88 ft3/h

Accuracy
Class 1.5
Error

Qmin≤Q<0.1Qmax: ±3%

0.1Qmax≤Q≤Qmax: ±1.5%

Power Consumption
MAX: 350mAh/year(40uA/h) (VCC=3.6V) (at:25°C or77°F)
Power Supply
3-3.6VDC
Temperature Measurement
YES
Working Pressure
0~20kPa / 0~2.90psi
Pressure Loss
200pa / 0.029psi or less (at Qmax)
Working Temperature
-25℃-55℃/-77°F-131°F
Storage Temperature
-30°C-70oC/-86oF-158°F
Working Humidity
≤95% RH without condensation

Note: Higher pressure gas meters can be customized, please consult sales@gasanalyzer.com.cn.
