Ultrasonic biogas flowmeter
Home > Product > Gas Flowmeter

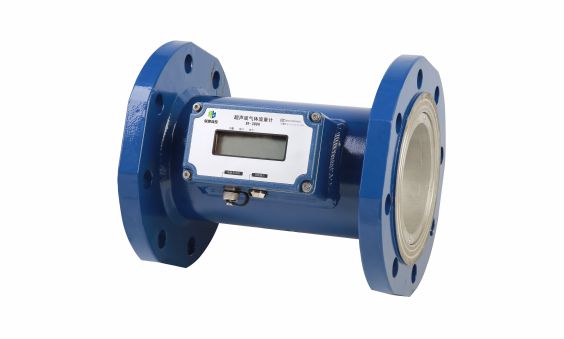

Ultrasonic Biogas Flowmeter

BF-3000
BF-3000 Ultrasonic Biogas Flowmeter can be commonly used with various industrial gas streams(biogas, natural gas, air, etc.), but with special design to enable it withstand the wet and corrosive gas conditions in biogas application.
The built-in temperature and pressure sensors enable to make real time compensation and reach higher accuracy. The unique CH4 composition reading function requires no additional device and input, which making it possible to continuously monitor the biogas quality and quantity with lowest investment.
Segment: Gas Flowmeter
Division: Ultrasonic Biogas Flowmeter
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • No moving parts, no pressure drop.
  • Methane concentration reading in the same unit.
  • Temperature & pressure compensated, high precision.
  • Ultrasonic TOF principle, routine maintenance free.
  • Ceramic coated probe with high corrosion resistance.
  • All-in-one detect probe, provides readings of flow velocity, totalized volume, temperature, pressure and methane concentration directly.
  • Built-in industrial lithium battery for backup power supply.

Specifications

Applicable pipeline
DN32     DN50    DN80    DN100    DN125    DN150     DN200     DN250     DN300

Flow range (m3/h)

DN32: 3-65

DN50: 8-160

DN80: 12-240

DN100: 20-400

DN125: 30-600

DN150: 40-800

DN200: 80-1600

DN250: 120-2400

DN300: 160-3200

Connection interface

DN32: 1"1/4

DN50: 2"

DN80  DN100  DN125  DN150  DN200  DN250  DN300: Convex flange

Accuracy range
 		Class 1.5
Working pressure
0-200kPa
Working temperature
(-10~40) °C
Environment humidity
≤99% RH
CH4 composition
Range 30-100%VOL, Accuracy±5%FS
Power supply

External power supply: Safety Barrier Ui=5V, Li=100mA (main power supply）

Internal battery: 3.6V ER26500(backup power supply)

Communication
RS-485
Explosion-proof level
ExibllAT4Gb
IP grade
IP65

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
