Portable Flue Gas Analyzer
Home > Product > Flue Gas Analyzer

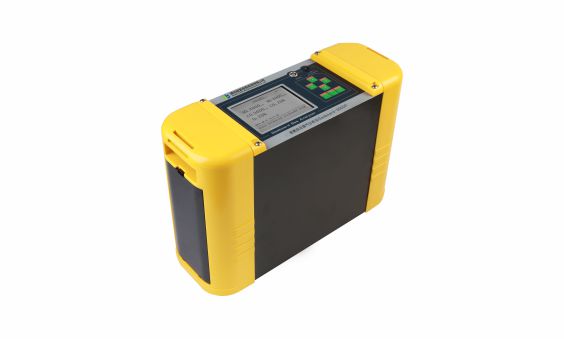

Portable Flue Gas Analyzer

Gasboard-3000P
It is economical portable type which mainly based on electrochemical sensors to measure the volume concentration of CO,CO2 ,O2 ,SO2 ,NO in flue gas and to figure out excess air coefficient. This product has high precision, small volume, it is convenient to carry, simple to operate and it is extensively applied in steel, chemical, energy conservation monitoring, energy efficiency evaluation and other fields.
Segment: Flue Gas Analyzer
Division: Flue gas analyzer
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Simultaneous measurement of O2, SO2, CO2, CO ,NO, optional temperature, pressure, flow.
  • NDIR-technology to measure CO2.
  • Maximum measure 5 gases in one gas analyzer.
  • Auto zero function.
  • Built-in pump.
  • Calculation of Lambda and combustion efficiency.
  • LCD (320 * 240) display.
  • RS232 output.
  • Weight: 6KG.

Specifications

Measurement Components
SO2, NO, CO, CO2, O2, flue gas temperature
Measurement technology

CO2: NDIR；

CO/O2/SO2/NO: ECD；

Flue gas temperature:K-type thermocouple

Measurement Range

SO2/NO: (0～2000) ppm；

CO: (0~5000) ppm；

CO2/O2: (0～25)%

Accuracy

CO/CO2/SO2/NO/O2: ±2%F.S.；

Flue gas temperature：±3℃

Resolution

SO2/NO/CO: 1ppm；

CO2/O2: 0.01%

Repeatability
≤2%
Response time
T90＜20s (NDIR)
Flowrate
(0.7~1.2) L/min
Output
RS485/RS232
Power supply
Built-in rechargeable lithium battery, external 12.6V charger

  • With self-diagnosis function, can check the sensor status online
  • Built-in imported sampling pump

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
