Ultrasonic Gas Meter

USM Series

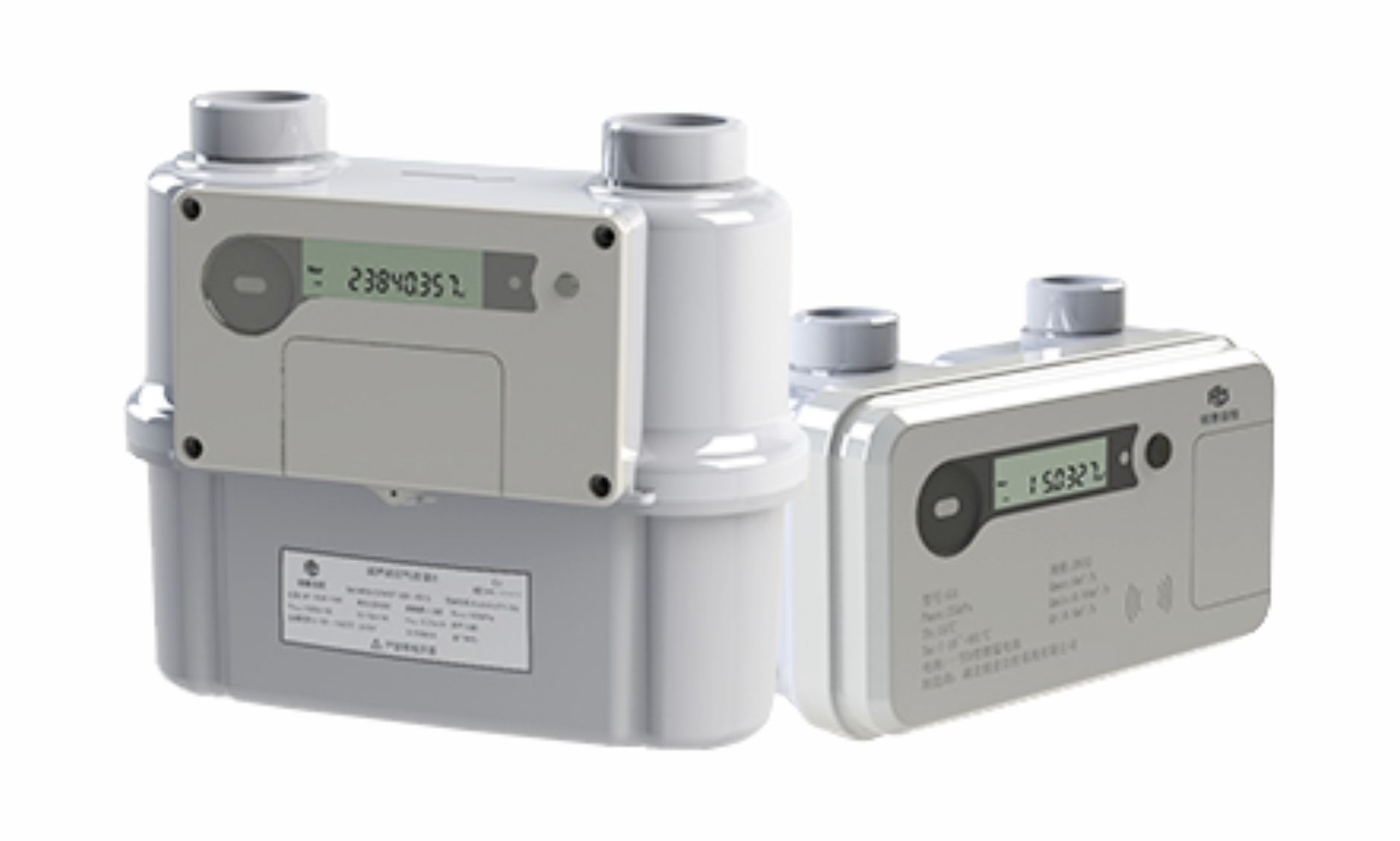

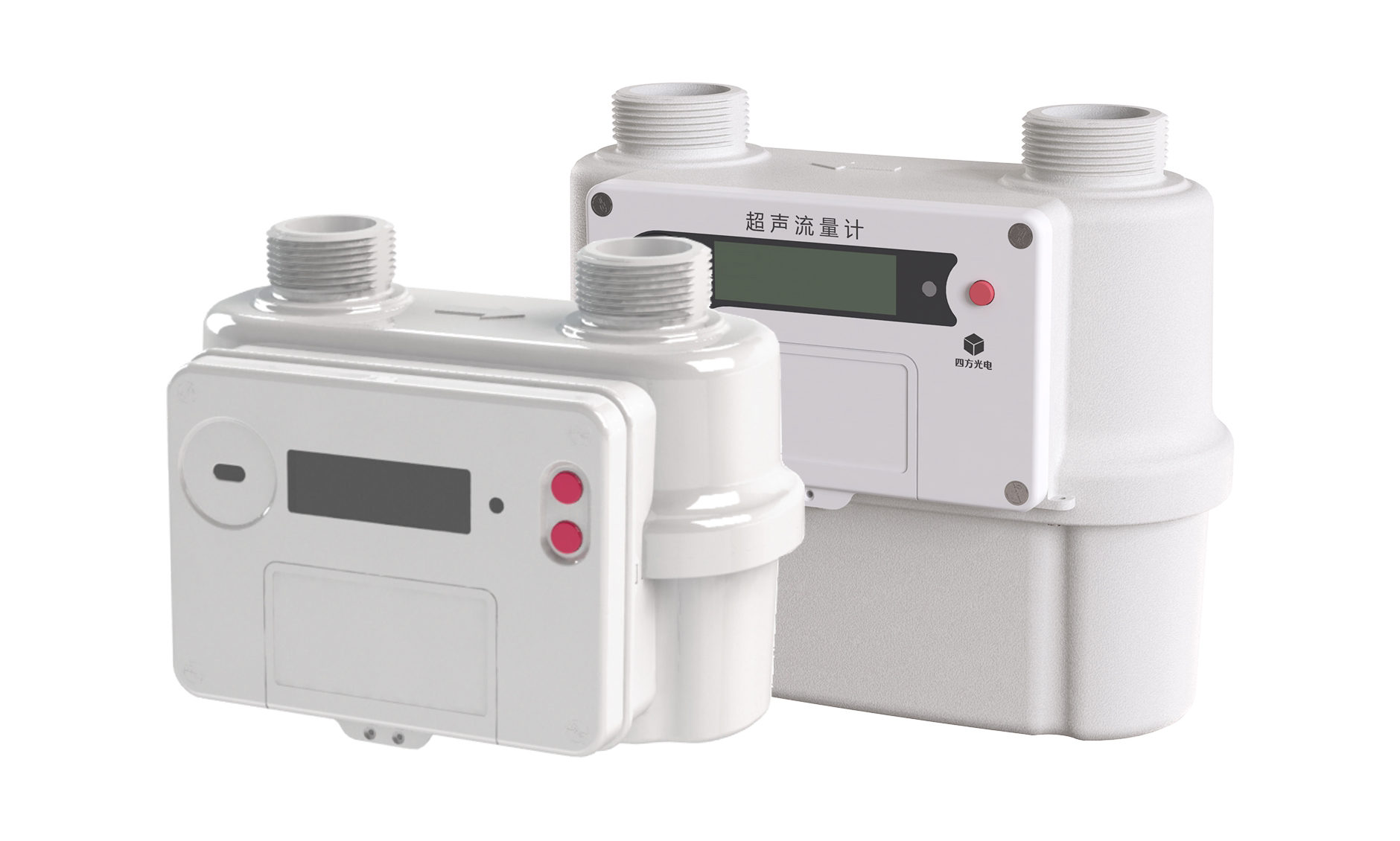

USM Series Ultrasonic Gas Flow Meter G2.5-G65 is the smart meter that adopts TOF (Time of Speed) principle to measure flow velocity of gas medium, with built-in temperature & pressure (≥G6) compensation and smart software algorithm, consumed gas volume can be calculated and displayed on meter’s screen.
Optional GPRS or NB-IoT wireless communication allows reading gas volume and arranging top-up remotely. Gas leakage check system realized by built-in shut-off valve can guarantees user safety by automatically cutting off gas supply in case of inconspicuous leakage.
USM series are widely applied for natural gas metering in residential, commercial and industrial fields.
Segment: Gas Flowmeter
Division: Ultrasonic Gas Meter
  • PCT patent for ultrasonic gas flow meter module
  • Built-in temperature and pressure (≥G6) compensation
  • Class 1.5 accuracy with intelligent software algorithm for air, 100% CH4, H1 and different natural gases
  • Anti-contamination, long-term stability of accuracy
  • Digital display for cumulative gas volume, instant flow rate, temperature, work mode, etc.
  • Built-in shut-off valve for stopping gas supply in case of error conditions
  • No moving part, no mechanical wear that leads to degradation of accuracy, no maintenance cost;
  • No magnetic induction elements, free from magnetic field effect
  • Small size, light weight, easy installation
  • Compliant to OIML R137 and MID
  • GPRS and NB-IoT optional
Model USM-G2.5/64 USM-G6/G10/G16 USM-G25/G40/665
Measurement Range USM-G2.5: 0.025~4 m³/h[0.88~ 141.26 ft³/h]
USM-G4: 0.04~6 m³/h [1.41~ 211.88 ft³/h]
USM-G6: 0.06~10 m³/h [2.12~353.14ft³/h]
USM-G10: 0.1~16 m³/h [3.53~565.02 ft³/h]
USM-G16: 0.16~25 m³/h [5.65~882.85 ft³/h]
USM-G25: 0.25~40 m³/h [8.83~1412.6 ft³/h]
USM-G40: 0.4~65 m³/h [14.13~2295.41 ft³/h]
USM-G65: 0.65~100 m³/h [22.95~3531.4 ft³/h]
Accuracy Class 1.5
Error Qmin≤Q<0.1Qmax: ±3%; 0.1Qmax≤Q≤Qmax:±1.5%
Battery 3.6V Lithium battery
Connector Type Screw thread, G1-1/4 or M30*2 Screw thread, G1-1/2 USM-G25: Screw thread, G2
USM-G40: Screw thread, G2-1/2
USM-G65: Screw thread, G2-1/2
Dimensions 210*113.5*149mm 246*204*110.5mm 330*248*167mm
Weight 1.1kg 2.3kg 4.0kg
Center Distance of Connectors 110mm 150mm 180mm
Working Pressure 0~20kPa / 0~2.90psi 0~50kPa / 0~7.25psi Normal pressure:0-50kPa/0-7.25psi
Higher pressure:0~250kPa/0~36.26psi
Working Temperature -20℃~55℃ / -68℉~131℉
Storage Temperature -30℃~70℃ / -86℉~158℉
Protection Class Aluminum case: IP54
Steel case: IP65

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
