Automotive Exhaust Gas Analyzer
Automotive Exhaust Gas Analyzer

Automotive Exhaust Gas Analyzer

Cubic Instruments independently developed total solution of automotive emission testing from OEM gas bench, exhaust gas analyzer, opacity meter, engine tachometer to engine emission measurement system and PEMS based on our core gas sensing technologies including dual beam NDIR, Micro flow NDIR, ultraviolet differential absorption spectroscopy (UV-DOAS), NDUV, hydrogen flame ionization detection technology (HFID), Zirconia and electrochemical technologies. With high accuracy and local regulation compliance such as OIML R99 class 0 standard, India ARAI standard, ISO 11614 standard, our analyzers are widely adopted by gas analyzers manufacturers, automotive inspection & maintenance stations, automotive workshop, engine & vehicle manufacturers, relevant scientific research departments and testing institutions worldwide.

Product Recommendation Matrix

For Applications: Automotive Inspection&Maintenance,Engine Bench Test, SCR Efficiency Inspection.
Vehicle Type Model Measurements Technologies Accuracy Recommendation
Gasoline, NG, LPG, Alcohol Vehicles

Automobile Emission Gas Analyzer Gasboard-5020 Gasboard-5020

Learn More

CO, CO2, HC,

O2, NO

Dual Beam NDIR
ECD
OIML R99 Class 0 • Regulated temperature system avoid temperature impact.
• Optional built-in printer
• Electrochemical O2&NO sensors

Automobile Emission Gas Analyzer Gasboard-5260 Gasboard-5260

Learn More

CO, CO2, HC,

O2, NO, NO2

Dual Beam NDIR
Micro-flow NDIR
NDUV,ECD
OIML R99 Class 00 • NO measurement by Micro-flow NDIR, NO2 measurement by NDUV, provides high accurate NOx reading.
Diesel Vehicle

Automobile Emission Gas Analyzer Gasboard-5230 Gasboard-5230

Learn More

CO2, NO, NO2 Dual Beam NDIR
Micro-flow NDIR
NDUV
OIML R99 Class 00 • NO measurement by Micro-flow NDIR, NO2 measurement by NDUV, provides high accurate NOx reading.

Opacity Meter Gasboard-6000Gasboard-6010

Learn More

Opacity degree N value
Light absorption coefficient K value
Partial flow ISO 11614 • Partial flow technology
• Separate design consists of main machine and display monitor

Opacity Meter Gasboard-6050 Gasboard-6050

Learn More

ISO 11614 • Partial flow technology
• Stand alone compact design in one machine

For Applications: Engine Exhaust Direct Testing
Vehicle Type Model Measurements Technologies Accuracy Recommendation
Gasoline,
NG, LPG, Alcohol,
Diesel Vehicles
For Engine Exhaust Direct TestingEngine Bench TestEngine Type Certification and Production Consistency Inspection

Gasboard-9801Gasboard-9801

Learn More

NO,NO2,THC,

CO,CO2,O2

UV-DOAS;HFID;
Dual Beam NDIR;
ECD
2% of reading or
0.3% F.S.
• HFID technology for THC measurement;
• Separate measurements of NO&NO2 by UV-DOAS;
• Widely applied in engine exhaust direct testing
For Real Driving Emission Testing

Gasboard-9805Gasboard-9805

Learn More

NO,NO2,THC,

CO,CO2,PN/PM,

Emission gas flow
UV-DOAS;HFID;
Dual Beam NDIR;
Ion mobility;
Differential pressure
2% of reading or
0.3% F.S.
• HFID technology for THC measurement;
• Separate measurements of NO&NO2 by UV-DOAS;
• Widely applied in real driving testing application.
For OEM Gas Analyzer
Model Technologies Measurement Gas Measurement Range Features

Gasboard-2000

Learn More

Dual Beam NDIR CO 0-15.00% • One NDIR gas bench for CO, CO2, HC three gases detection
• OIML R99 class 0 standard compliance
• Ultra low range to ppm level measurement
• Regulated temperature system to avoid temperature impact
• Cleanable gas chamber for easy maintenance
• Upgradable O2 and NOx sensor
CO2 0-20.00%
HC 0-20000ppm

Gasboard-2100

Learn More

Micro-flow NDIR NO 0-5000ppm • Patented optical measurement technology to replace the electrochemical NO sensor
• Dual chambers, less drift, high accuracy
• Longer lifetime, no regular replacement

Gasboard-2200

Learn More

UV-DOAS NO 0-5000ppm • Direct detection for NO, NO2 simultaneously without NOx converter
• No cross-interference between measurement gases
• Modular design for easy integration
• Longer lifetime, no regular replacement
NO2 0-1000ppm

Gasboard-2300

Learn More

NDUV NO2 0-1000ppm • Direct detection for NO2 by NDUV with high accuracy
• No necessary to use the complicated NOx converter
• Suitable for ultra-low range NO2 monitoring, no moisture contamination
• Modular design for easy integration
For Application: Automotive EFI or SCR system

Vehicle Type

Model

Operation Voltage

Features

DieselVehicles

Nitrogen Oxide NOx Sensor(More Details)

12V/24V

Independent For

• Ceramic Chips Sealing
• Metal Cover Packing
• Fast Response
• High Accuracy


Quality Assurance

• IATF16949:2016
• ISO 14001:2015
• ISO14001:2015
• ISO 45001:2018
• ASPICE Level 2
• Certified Supplier






Gasoline Vehicles

Wide Band Oxygen Sensor LSU4.2(More Details)

6~8V

Wide Band Oxygen Sensor LSU4.9(More Details)

6~8V

Wide Band Oxygen Sensor LSU ADV(More Details)

6~8V

LSF XFOUR Oxygen Sensor(More Details)

6~8V

LSF 4.2 Switch Type Oxygen Sensor(More Details)

6~8V

Browse All Products

Exhaust Gas Analyzer

  • Portable Particle CounterGasboard-6200
    Gasboard-6200
    Portable Particle Counter
    Cubic Instruments Portable Particle Counter is designed to measure the particle number of fine particles in automotive exhaust gas. Based on DC (Diffusion Charge) principle, the machine determines the number of particles by measuring the charge carried on particles in sample gas. The exhaust gas can be directly measured, no need for filtration and dilution, which ensuring the long-term clean operation and reducing the maintenance costs effectively. The portable particle counter is designed with features of high sensitivity, high accuracy, fast response, excellent stability, and etc.Its high-definition touch screen design better enhances the human-computer interaction experience.
    More
  • Automobile Emission Gas AnalyzerGasboard-5020
    Gasboard-5020
    Automobile Emission Gas Analyzer
    Gasboard—5020 emission gas analyzer is used for measuring the concentration of automobile emission gases CO ,CO2 ,HC ,O2 and NOx (optional). It is designed based on dual beam non-dispersion infrared (NDIR) principle, complied with latest national standard GB 18285, as well as ISO 3930 or OIML R99 Class 1, 0, 00 standards, applicable to the measurement of engine exhaust gas composition fueled by gasoline, LPG, CNG, etc.
    More
  • Opacity MeterGasboard-6010
    Gasboard-6010
    Opacity Meter
    Gasboard-6010 opacity meter provides a simple and accurate way to measure the opacity of smoke emitted from diesel vehicle by partial flow technology. This model can measure the complete opacity spectrum from 0-100% in either continuous or free acceleration test.
    More
  • Opacity MeterGasboard-6050
    Gasboard-6050
    Opacity Meter
    Gasboard-6050 opacity meter provides a simple and accurate way to measure the opacity of smoke emitted from diesel vehicle by partial flow technology. This model can measure the complete opacity spectrum from 0-100% in either continuous or free acceleration test.
    More
  • Vehicle Headlight TesterGasboard-6100
    Gasboard-6100
    Vehicle Headlight Tester
    Gasboard-6100 vehicle headlight tester adopts dual-camera structure and precision optical system for light-seeking positioning and measurement analysis. Combined with digital image processing and motion control technology to form an intelligent measurement system, it completely matches the vehicles headlamp testing requst, such as halogen lamps, xenon lamps, LEDs and various lamp types, and suitable for motor vehicle safety technology/comprehensive performance testing line network testing, automobile manufacturer assembly (quality assurance) testing line and motor vehicle repairing department maintenance testing.
    More
  • Engine TachometerGasboard-8220
    Gasboard-8220
    Engine Tachometer
    Gasboard-8220 Engine Tachometer is developed for supporting 3 types engine RPM measuring: magnetic, battery and noise tyes. Based on advanced design of hardware together with integrated software analysis technology for petrol engine and diesel engine‘s RPM measuring, this model is easy to operate, provide accurate and reliable reading.
    More
  • Online Automobile Emission Gas AnalyzerGasboard-5230
    Gasboard-5230
    Online Automobile Emission Gas Analyzer
    Gasboard-5230 Automobile Emission Gas Analyzer adopts micro flow NDIR principle with independent intellectual property and international PCT (CN2018100767) to detect NO, dual channel structure sensor and special filters highly resolve environmental temp. instability and electroniccomponents aging issues. It adopts NDIR principle to measure CO2 and NDUV principle to measure NO2 directly without NOx converter.
    More
  • Online Automobile Emission Gas AnalyzerGasboard-5260
    Gasboard-5260
    Online Automobile Emission Gas Analyzer
    Gasboard-5260 Automobile Emission Gas Analyzer adopts micro-flow NDIR technology with independent intellectual property and international PCT(CN2018100767) to measure NO gas, NDUV technology to measure NO2 gas and NDIR technology to measure HC, CO, CO2 gases simultaneously. Gasboard-5260 is widely used in gasoline vehicles emission gas analysis who requires direct measurements of NO&NO2 gases.
    More

Engine Emission Measurement System

  • PEMSGasboard-9805
    Gasboard-9805
    PEMS
    Gasboard-9805 is a portable emission measurement system measures CO, CO2 by infrared NDIR technology, NO & NO2 by ultraviolet UV-DOAS technology, and particulate matter, emission flow, GPS data, ambient temperature and humidity, pressure measurement, as well as total emissions automatic calculation. It is modular design with built-in battery(more than 4 hours battery lifetime), widely used in on-load real driving emission testing applications.
    More
  • Engine Exhaust Measurement SystemGasboard-9801
    Gasboard-9801
    Engine Exhaust Measurement System
    Gasboard-9801 Engine Exhaust Measurement System combines high-precision hydrogen flame ionization detection technology (HFID), UV-DOAS gas analysis technology, non-dispersive infrared technology (NDIR) and long-lifetime electrochemical sensor technology(ECD), simultaneously measures THC, NOx, CO, CO2, O2 and other emission gases concentration. Gasboard-9801 is complete engine exhaust measurement system for diesel engine manufacturers, mobile machinery manufacturers, relevant scientific research departments and testing institutions who need to analyze the engine exhaust pollutants to meet the increasingly stringent and flexible changeable emission limits request.
    More

OEM Gas Bench

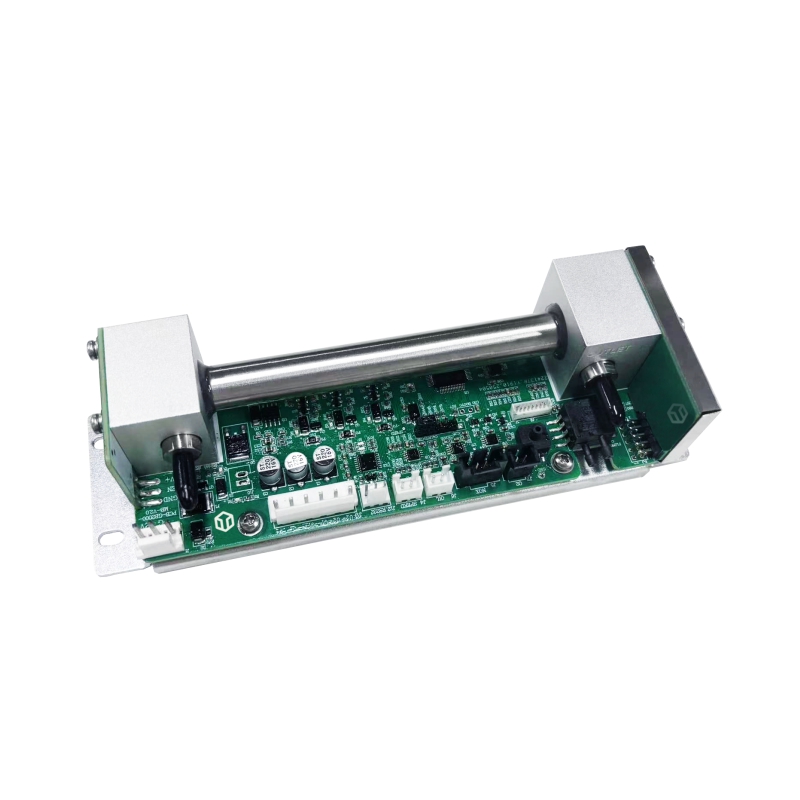

  • NDIR Gas BenchGasboard-2000
    Gasboard-2000
    NDIR Gas Bench
    The Gasboard-2000 NDIR gas bench which is based on Dispersive Infra-Red (NDIR) sensing principle to measure CO, CO2, HC in exhaust gases from gasoline and petro engines. The Electrochemical O2 and NO sensors can be plug-in easily on Gasboard-2000. It complies with advanced international standards: OIML R99 Class 1, 0, 00 standards, and widely used by OEM integrators, automobile emission gas analyzer manufacturer due to its flexible integration, high quality and easy maintenance.
    More
  • Micro flow NDIR NO Gas BenchGasboard-2100
    Gasboard-2100
    Micro flow NDIR NO Gas Bench
    Gasboard-2100 micro flow NDIR NO gas bench adopts independent intellectual property rights and international PCT patent (PCT/CN2018100767) dual-chamber sensor technology. The gas chamber is composed of measured gas chamber and reference gas chambe, this design has great capacity to solve environmental temperature instability and electronic components aging issues. It is very suitable for low range vehicle exhaust emission gas NO measurement with high accuracy.
    More
  • UV-DOAS NOx Gas BenchGasboard-2200
    Gasboard-2200
    UV-DOAS NOx Gas Bench
    Gasboard-2200 UV-DOAS NOx gas bench adopts high-precision ultraviolet differential absorption spectroscopy gas analysis technology to measure NO & NO2 simultaneously. It’s widely used by gas analyzers and PEMS manufacturers due to its flexible integration, high quality and easy maintenance.
    More
  • NDUV NO2 Gas benchGasboard-2300
    Gasboard-2300
    NDUV NO2 Gas bench
    Gasboard-2300 NDUV NO2 gas bench adopts non-dispersive ultraviolet absorption (NDUV) technology and highly stable pulsed LED UV source to measure NO2 gas. It can measure the gas concentration of NO2 with high accuracy and strong anti-interference without NOx converter.
    More

Automotive O2 & NOX Sensor

  • Diesel Nitrogen Oxide(NOx)SensorNOx Sensor
    NOx Sensor
    Diesel Nitrogen Oxide(NOx)Sensor
    The nitrogen oxygen sensor for diesel nox emission monitor detects the NOx concentration in the exhaust gas of the diesel engine, converts it into an electrical signal and transmits it to the SCR system, determines the amount of fuel injection and the amount of urea required to treat the NOx in the exhaust gas, and purifies the exhaust gas to meet the emission standard.
    More
  • Wide Band Oxygen Sensor-LSU 4.2LSU 4.2
    LSU 4.2
    Wide Band Oxygen Sensor-LSU 4.2
    Cubic could offer affordable O2 sensors LSU4.2. Fully sealed and waterproof design IP67. Equipped with advanced ceramic technology for high-temperature working conditions. A critical component of a car's exhaust system
    More
  • Wide Band Oxygen Sensor-LSU 4.9LSU 4.9
    LSU 4.9
    Wide Band Oxygen Sensor-LSU 4.9
    High Accuracy Air-fuel sensors offered by Cubic. high stability and fast response time. Equipped with advanced ceramic technology for high-temperature working conditions.
    More
  • Wide Band Oxygen Sensor -LSU ADVLSU ADV
    LSU ADV
    Wide Band Oxygen Sensor -LSU ADV
    The LSU ADV universal automotive oxygen sensor for exhaust gas easures the oxygen content in the exhaust gas. Faster light-off time,more sensitive sensing performance, good reliability, and longer service life
    More
  • LSF XFOUR Oxygen SensorLSF XFOUR
    LSF XFOUR
    LSF XFOUR Oxygen Sensor
    Cubic manufacturers automotive LSF XFOUR Oxygen Sensor. Independent R&D and production for ceramic/zirconia oxide ZrO2 chips.Help reduce emission pollution for environmental protection.
    More
  • LSF 4.2 Switch Type Oxygen SensorLSF 4.2
    LSF 4.2
    LSF 4.2 Switch Type Oxygen Sensor
    Cubic switch type oxygen sensor ST is also called as four-wire oxygen sensor. Cubic is automobile aftermarket oxygen sensor supplier. Strong ODM/OEM capacity, cover multiple series of car models. Increase fuel efficiency, improve engine performance.
    More

Automotive Exhaust Gas Analyzer

Cubic Instruments independently developed total solution of automotive emission testing from OEM gas bench, exhaust gas analyzer, opacity meter, engine tachometer to engine emission measurement system and PEMS based on our core gas sensing technologies including dual beam NDIR, Micro flow NDIR, ultraviolet differential absorption spectroscopy (UV-DOAS), NDUV, hydrogen flame ionization detection technology (HFID), Zirconia and electrochemical technologies. With high accuracy and local regulation compliance such as OIML R99 class 0 standard, India ARAI standard, ISO 11614 standard, our analyzers are widely adopted by gas analyzers manufacturers, automotive inspection & maintenance stations, automotive workshop, engine & vehicle manufacturers, relevant scientific research departments and testing institutions worldwide.

Show More

Product Recommendation Matrix

Product Type0

Measurement Technique 0

Measurement Object 0

RPM 1
Vehicle Headlight 1
Particulate 2
Smoke 2
Emission Gases 11

Fuel Type 0

Diesel Vehicle 13
Petro Vehicle 12

Application 0

Aftermarket 6
Automotive/Engine Manufacturer 2
I/M Station 7
