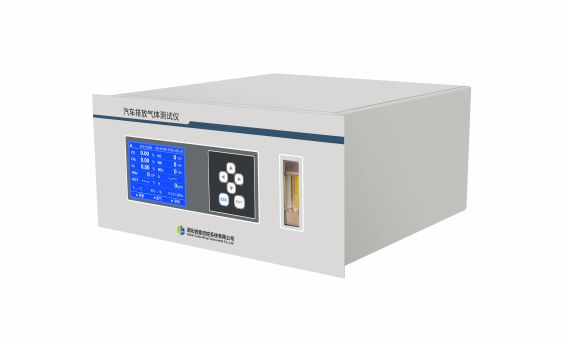

Online Automobile Emission Gas Analyzer

Gasboard-5230

Gasboard-5230 Automobile Emission Gas Analyzer adopts micro flow NDIR principle with independent intellectual property and international PCT (CN2018100767) to detect NO, dual channel structure sensor and special filters highly resolve environmental temp. instability and electroniccomponents aging issues. It adopts NDIR principle to measure CO2 and NDUV principle to measure NO2 directly without NOx converter.

Segment: Automobile Exhaust Gas Analyzer
Division: Exhaust Gas Analyzer

Product Inquiry

Send Email to Us

Features

Micro-flow NDIR NO gas bench replaces traditional ECD NO sensor, high accuracy, longer lifetime, no regular replacement.
NDUV NO2 gas bench without NOx converter, direct NO2 detection with high accuracy.
Auto temp. and pressure compensation
Multi-stage filtration system ensures longer lifetime

Specifications

Gas Measurements	CO2 NO NO2
Range	CO2: (0.00-20.00) %; NO: (0~5000) ppm; NO2: (0~1000) ppm
Accuracy	CO2: (0.00~16.00) %：Abs. error:±0.3%；Rel. error:±3%; (16.01~20.00) %: Rel. error:±5% NO: (0~4000) ppm：Abs. error:±25 ppm；Rel. error:±4%; (4001~5000) ppm：Rel. error:±8% NO2: (0~1000) ppm：Abs. error:±25 ppm；Rel. error:±4%; *Remark: Abs. error or Rel. error whichever is greater
Resolution	NO/NO2: 1ppm； CO2: 0.01%；
Response time	HC/CO/CO2: T90≤8s; NO/NO2: T90≤10s; O2: T90≤12s
Warm up time	30min
Communication	RS-485/232
Power supply	100~240VAC, 150w

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.

Related Product

Gasboard-5020: Automobile Emission Gas Analyzer; Gasboard—5020 emission gas analyzer is used for measuring the concentration of automobile emission gases CO ,CO2 ,HC ,O2 and NOx (optional). It is designed based on dual beam non-dispersion infrared (NDIR) principle, complied with latest national standard GB 18285, as well as ISO 3930 or OIML R99 Class 1, 0, 00 standards, applicable to the measurement of engine exhaust gas composition fueled by gasoline, LPG, CNG, etc.

Gasboard-6010: Opacity Meter; Gasboard-6010 opacity meter provides a simple and accurate way to measure the opacity of smoke emitted from diesel vehicle by partial flow technology. This model can measure the complete opacity spectrum from 0-100% in either continuous or free acceleration test.

Gasboard-8220: Engine Tachometer; Gasboard-8220 Engine Tachometer is developed for supporting 3 types engine RPM measuring: magnetic, battery and noise tyes. Based on advanced design of hardware together with integrated software analysis technology for petrol engine and diesel engine‘s RPM measuring, this model is easy to operate, provide accurate and reliable reading.

Gasboard-5260: Online Automobile Emission Gas Analyzer; Gasboard-5260 Automobile Emission Gas Analyzer adopts micro-flow NDIR technology with independent intellectual property and international PCT(CN2018100767) to measure NO gas, NDUV technology to measure NO2 gas and NDIR technology to measure HC, CO, CO2 gases simultaneously. Gasboard-5260 is widely used in gasoline vehicles emission gas analysis who requires direct measurements of NO&NO2 gases.

Gasboard-9805: PEMS; Gasboard-9805 is a portable emission measurement system measures CO, CO2 by infrared NDIR technology, NO & NO2 by ultraviolet UV-DOAS technology, and particulate matter, emission flow, GPS data, ambient temperature and humidity, pressure measurement, as well as total emissions automatic calculation. It is modular design with built-in battery(more than 4 hours battery lifetime), widely used in on-load real driving emission testing applications.
