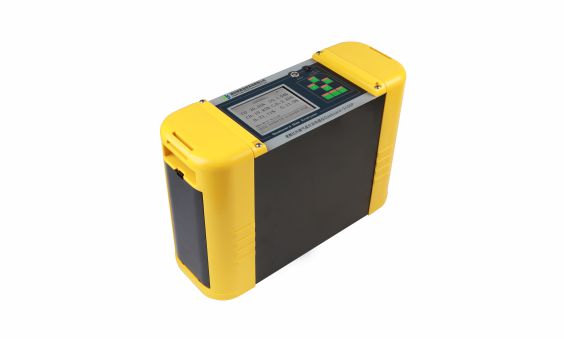

Portable Infrared Syngas Analyzer

Gasboard-3100P

Gasboard-3100P is a portable syngas analyzer based on NDIR ,TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination and calculate heat value.

EU Authorization No.: EP2796856

US Authorization No.: US9857323

Product Inquiry

Send Email to Us

Features

PCT approved product based on IR & TCD technologies to measure syngas composition. (EU and US Authorization No.: EP2796856 , US9857323).
Replacement to gas chromatography, mass spectrometry.
Patented NDIR and TCD technology, including ECD technology for reliable measurement of eight gases.
High-selectivity CH4 gas sensor, no interference from other hydrocarbons.
Fully compensated H2 sensor, no interference from CO, CO2, CH4 based on intelligent correction.
Built-in sample pump, flow meter and filters and battery for portable operation
Internal data record and RS232 COM port for data output.
Modular sensor design, easy maintenance.

Specifications

Gas	CO/CO2/CH4/H2/O2/C2H2/C2H4/CnHm*/calorific value calculation
Measurment Principle	CO/CO2/CH4/C2H2/C2H4/CnHm：NDIR； H2：TCD； O2：ECD
Measurment Range	CO/CO2/CH4/H2:(0~100)% O2:(0~25)%； C2H2/C2H4/CnHm:(0~10)%（optional）
Accuracy	CO/CO2/CH4/C2H2/C2H4/CnHm:±1%F.S.； O2/H2:±2%F.S.
Resolution	0.01%
Repeatability	≤1%
Response time	T90＜15s (NDIR)
Optimal flow Rate	(0.7~1.2) L/min
Inlet Gas Pressure	(2~50) kPa
Gas Condition	No Tar, No Dust and No Water
Communication	RS-485/RS-232
Power Supply	Internal rechargeable Li-ion battery, External 12.6V charger
Display	LCD Display

Note：CnHm is the sum of C2H6, C3H8, and C4H10.

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
