UV-DOAS Gas Bench
Home > Product > Flue Gas Analyzer

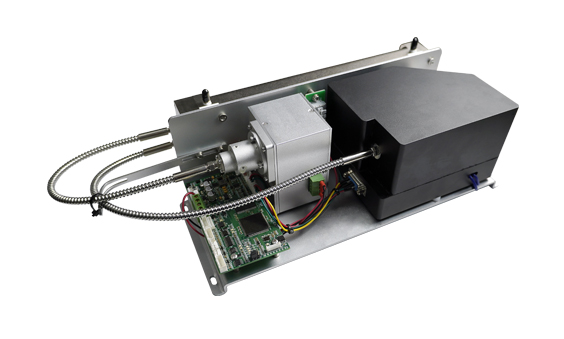

UV-DOAS Gas Bench

Gasboard-2205
Gasboard-2205 series UV-DOAS gas bench adopt high-precision ultraviolet differential absorption spectroscopy gas analysis technology. With flashing xenon lamp as light source, when the light is transmitted in the measured gas, the intensity of the differential absorption characteristic produced is different which is used to derive the gas concentration & gas type Using a unique algorithm, the long path is returned to the gas chamber multiple times to get high sensitivity & strong absorption signal, at the same time it support long service life and good stability. It can accurately measure the gas concentration of SO2, NO and NO2. The measurement range is less than 100mg/m3, which can completely fulfill the needs of the ultra-low emission monitoring market.
Segment: Flue Gas Analyzer
Division: OEM Gas Bench
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Advanced UV DOAS sensor for Measurement of ultra-low SO2, NO ≤250ppm, the loweat range to be 0-50mg/m3 & Optional NO2
  • One chamber for up to 3 gases components measurement simultaneously
  • Measurement NO2 directly without converter, and lowest to 100mg/m3
  • Automatic temperature compensation
  • No moisture & vibration interference
  • High precision, good stability and long life

Specifications

Measurement Gases
S02    NO   NO2（optional）
Measurement Technology
UV-DOAS
Measurement range

SO2: 0-100mg/m3 ；   NO: 0-100mg/m3;      NO2： 0-100mg/m3

(range can be customized）

Accuracy
≤±2%F.S.
Repeatability
≤2%
24h zero/span drift
≤±2%F.S.
7days zero/span drift
≤±2.5%F.S.
Response Time
T90<30s
Output
RS232
Power supply

Mainboard power supply：12VDC/24W

Constant temperature heating power supply：100~240VAC, 80W

PS: range and accuracy can be customized

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
