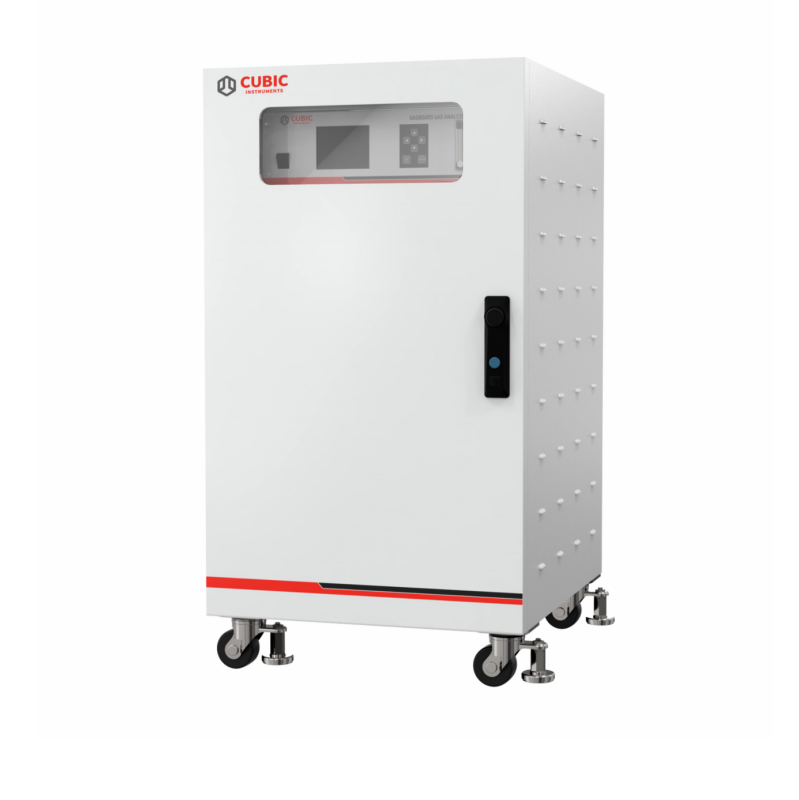

Online Tri-Gas Analysis System (CO/CO2/CH4)

Gasboard-9021
Gasboard-9021 is an online tri-gas analyzer designed for simultaneous, real-time measurement of CO, CO2, and CH4 in heat treatment furnace atmospheres. Based on Non-Dispersive Infrared (NDIR) technology, the analyzer provides stable and accurate gas measurement with minimal drift during long-term operation.

By simultaneously analyzing CO, CO2, and CH4, Gasboard-9021 enables furnace condition diagnosis and carbon potential calculation, providing an objective assessment of furnace atmosphere status. The measured data can be cross-validated against oxygen probe readings, offering an independent verification method for atmosphere control. Compliant with CQI-9 requirements, Gasboard-9021 meets automotive supply chain audit standards for atmosphere verification in heat treatment processes.

An optional TCD module is available for applications requiring H2 measurement in furnace atmospheres where hydrogen-bearing gases are used.
Segment: Process Gas Analyzer
Division: Syngas Analyzer
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Stable NDIR Tri-Gas Detection: Temperature-controlled NDIR sensors for simultaneous measurement of CO, CO2, and CH4 with minimized drift during long-term operation.
  • CQI-9 Compliance: Meets automotive supply chain audit requirements for process and quality stability.
  • Easy Operation & Maintenance: Integrated gas sampling and conditioning system with modular design for simplified installation and maintenance.
  • Optional H2 Measurement: Optional TCD detector with advanced interference correction technology for accurate H2 measurement without cross-interference from CO, CO2, or CH4.

Specifications

Basic Parameters
Measuring Components
 CO, CO2, CH4
Measuring Principle
 NDIR
Measurement Range
 CO2：0-5000ppm；
CO：0-30%；
CH4：0-10%；(Range can be customized)
Accuracy
 ≤±2%F.S.
Repeatability
 ≤±1%
Response Time
 ＜30S
Drift
 ≤±2%F.S. /2 month
Resolution
 CO2: 0.1ppm; CO: 0.01%; CH4: 0.01%
Operating Parameters
Inlet Flow Rate
 0.7~1.2L/min
Inlet Gas Pressure
 2~50kPa
Sampling Gas Condition
 No dust, no vapor, no tar
Operating Power
 AC110/AC220V±40V, 50/60Hz
Interface & Signals
Communication Interface
 RS-485/RS-232
Output Mode
 4~20mA Output


*For detailed specifications, please refer to the official datasheet. For further technical information, contact us at: 86-27-81628829 or sales@gasanalyzer.com.cn.


【Applications】

  • Carbon Potential & Furnace Atmosphere Control: Monitoring of CO, CO2, and CH4 concentrations to support carbon potential control and furnace atmosphere management in carburizing processes.
  • Process Parameter Optimization: Measurement of  in-furnance CO concentration to adjust COF/PF parameters for accurate carbon potential calculation.
  • Furnace Fault Detection: Analysis of CO and CO2 concentrations to identify furnace abnormalities, including carbon deposition, water leakage, gas leakage, and radiant tube failure.
