Portable combustion analyzer
Home > Product > Flue Gas Analyzer

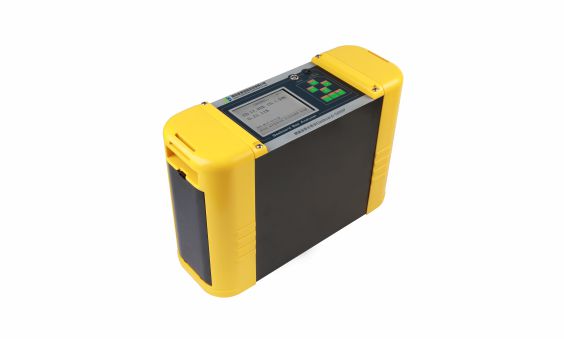

Portable Infrared Combustion Efficiency Analyzer

Gasboard-3400P
It is portable type, it is powered by Li- ion battery and can be used without AC power supply. It is used for measurement of the concentration of CO ,CO2 and O2 in sample gases simultaneously, calculating combustion efficiency and Lambda. It is based on the single source two beams non-dispersion infrared (NDIR) method for CO ,CO2,fuel cell method (ECD) for O2.
Segment: Flue Gas Analyzer
Division: Flue gas analyzer
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • Based on Innovative NDIR technology.
  • Able to measure CO,CO2 and O2 gases, and gas temperature simultaneously.
  • Real time calculate excess air coefficient.
  • Built-in sampling pump.
  • Auto air zeroing.
  • Touch Screen.
  • USB and RS232 output.
  • Optional extensible to measure pressure difference, calculating combustion efficiency, gas velocity, gas flow.
  • Data logging software available.
  • Simple pretreatment device(optional).

Specifications

Measurement
CO, CO2, O2, gas temperature
Technology

CO, CO2(NDIR)

O2(ECD)

Gas temperature: K type thermocouple

Range

CO: 0-5000ppm

CO2: 0-25%

O2: 0-25%

Gas temperature: 0-800℃

(Note: measurement range can be customized.)

Resolution

CO: 1ppm CO2/O2: 0.01%

Gas temperature: 1℃

Precision

CO,CO2: ≤2%FS

O2: ≤3%FS

Gas temperature: ≤3℃

Repeatability
≤2%
Gas flow
0.7-1.2 L/min
Inlet pressure
2kPa-50kPa
Sampling gas condition
no dust, no water, no tar
Response time(T90)
<15s (NDIR)
Communication interface
RS232
Power supply
built-in rechargeable lithium battery
Work temperature
0-50°C
Relative humidity
≤95% non condensing
Ambient pressure
86-108kPa
Dimension
410*150*290mm (L*W*H)
Weight
5 kgs
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
