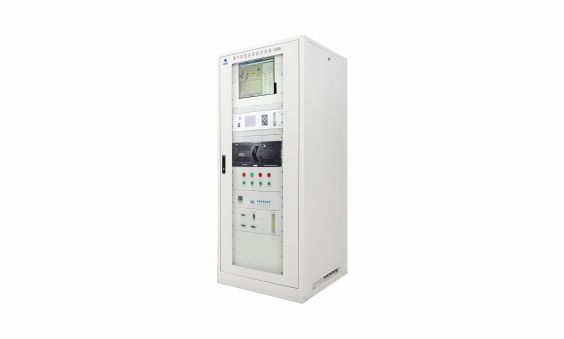

Continuous Emission Monitoring System (CEMS)

Gasboard-9050
The continuous emission monitoring system is based on innovative micro-flow NDIR technology to measure the SO2, NO, CO, CO2 and O2 (ECD or paramagnetic) five gases at the same time. Eliminate the ambient’s temperature influence on measurement value and less interference of water vapor on SO2 and NO measurement. It has excellent prolonged stability and less cross interference.
Segment: Flue Gas Analyzer
Division: Continuous Emission Monitoring System (CEMS)
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • The system continuously monitors the gaseous pollutants by heating extraction method.
  • Sampling probe has large filtering area, the filter easy to replace.
  • Pretreatment system using imported devices which effectively waterproof, dust-proof, anti-corrosion.
  • PLC data acquisition system is fully functional, intuitive and easy to operate.
  • A variety of data output.
  • The analyzer can be flexibly selected according to field requirements.
  • Analysis system cabinet modular design and easy to operate.
  • The analysis system has stability and high reliability, so it can reduce the daily maintenance costs.
  • This model have rich features, it can achieve automatic sampling, purging, calibration, fault diagnosis, alarm, etc.

Specifications

Range

SO2:0-2000ppm

NO: 0-2000ppm

CO： 0-5000ppm

CO2: 0-25%

O2: 0-25%

(Measurement range can be customized.)

Technology

S02, NO, CO, CO2 ( Micro-flow NDIR)

O2 ( ECD or Paramagnetic)

Resolution

SO2, NO, CO, CO2: 1 ppm

O2: 0.01%

Precision

SO2, NO, CO, CO2: ≤1%FS

O2: ≤2%FS

Repeatability
S02, NO, CO, CO2, O2 ≤1%
Gas Flow
0.7-1.2 L/min
Inlet Pressure
2kPa-50kPa
Sampling Gas Requirement
No dust, no water vapor
Response Time
<15s
Communication Port
RS-232/RS-485
Output
4-20mA
Power Supply
110V/220V±44V AC   50Hz±1Hz
Work Temperature
0-50°C
Relative Humidity
<95% non condensing
Ambient Air Pressure
86-108kPa
For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
