As the tightening legislation of emission control for automotive industry in lots of countries in an attempt to meet fuel-efficiency enhancing and global neutral carbon goal, the high technology measurement solution for automotive emission is more and more critical with challenges.

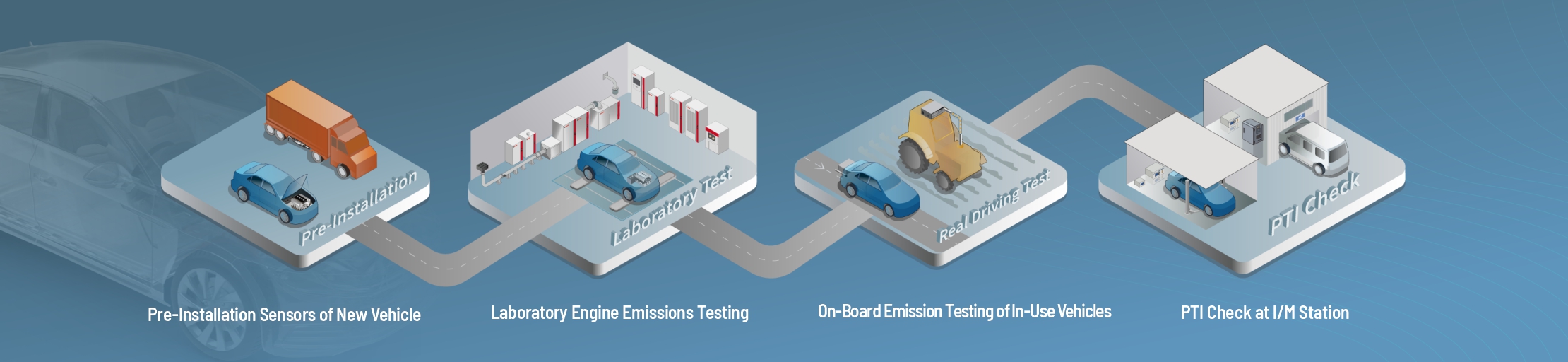

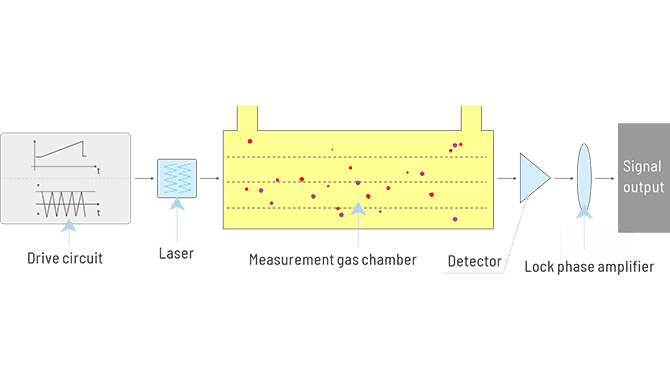

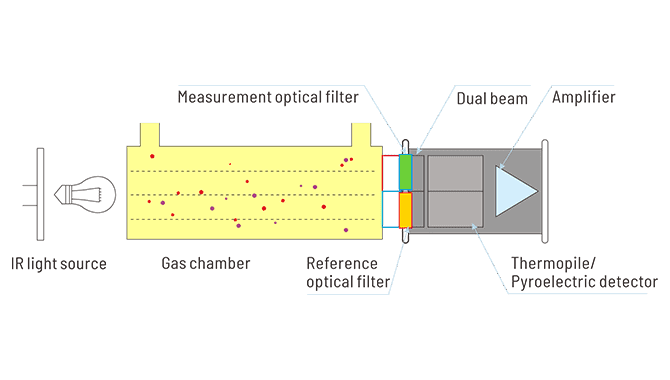

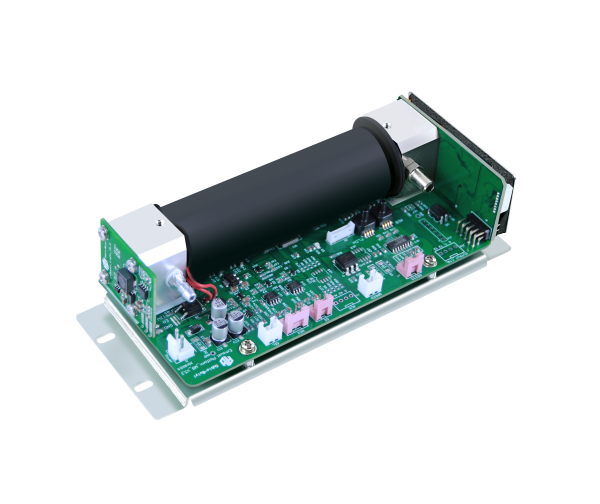

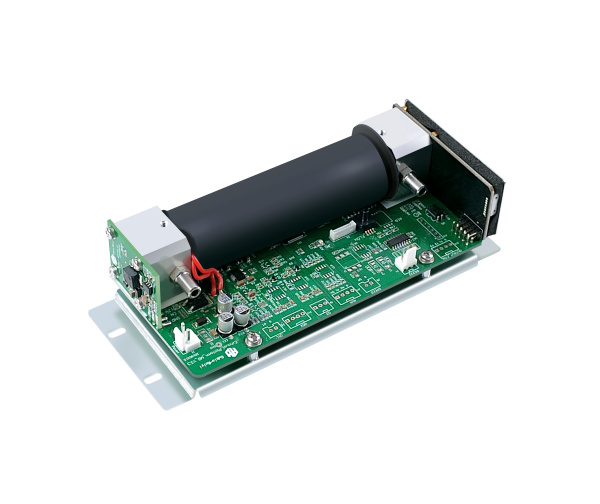

Based on the advanced gas sensing technologies platform such as NDIR, Micro-flow NDIR, UV, FID,TDLAS, DC, etc, Cubic develops complete and comprehensive automotive emission measurement solutions including OEM gas sensors, emission gas analyzers, emission gas measurement systems for every testing requirement in the whole automotive industry from vehicle developing process, to in-use vehicles detection and PTI checking applications.

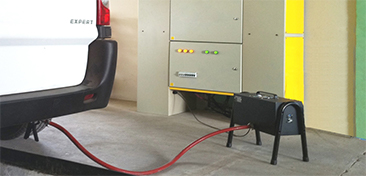

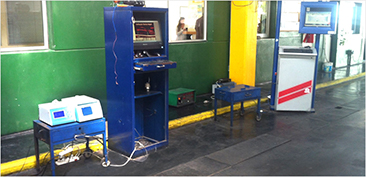

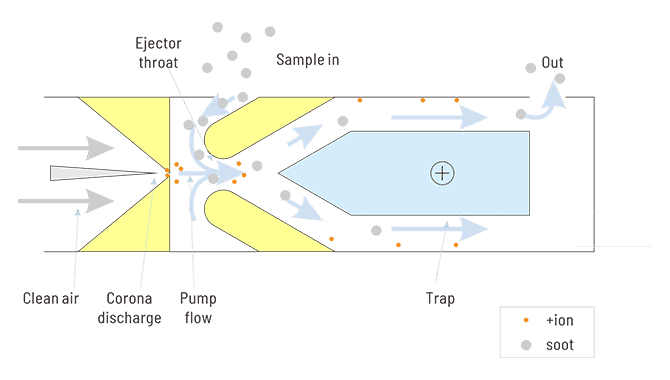

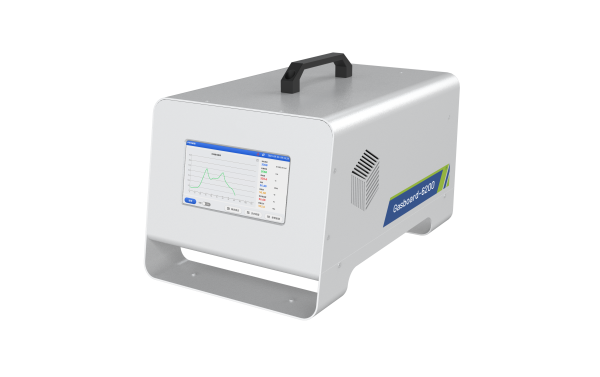

Cubic provide complete emission gas analysis solution for automotive Periodic Technical Inspection (PTI) in various countries where periodic inspection is mandatory to verify compliance with technical specifications for safety and environmental protection. Cubic’s solution covers from OEM gas benches to automobile emission gas analyzers which are widely applied in automotive inspection stations, maintenance stations, workshops, research centers for cars, trucks, buses, industrial vehicles, two & three-wheelers, motorcycles emission testing. For popular particle measurement legislation requirements in Europe such as Netherlands, Belgium, Switzerland and Germany, Cubic develops the newest portable particle counter Gasboard-6200 by Extended Diffusion Charging technology, it is designed with the features of fast response, user-friendly operation, and module sensor design to support fast and reliable particle measurement.

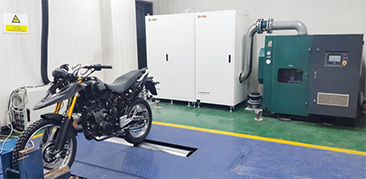

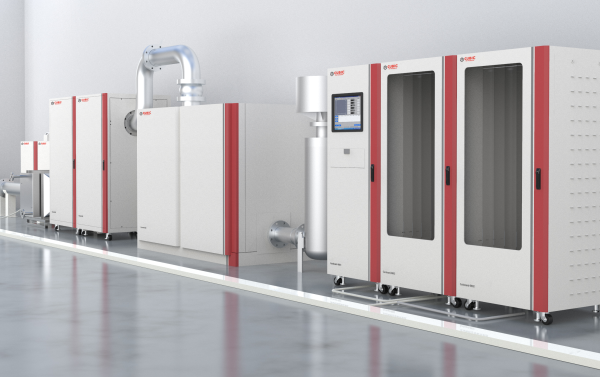

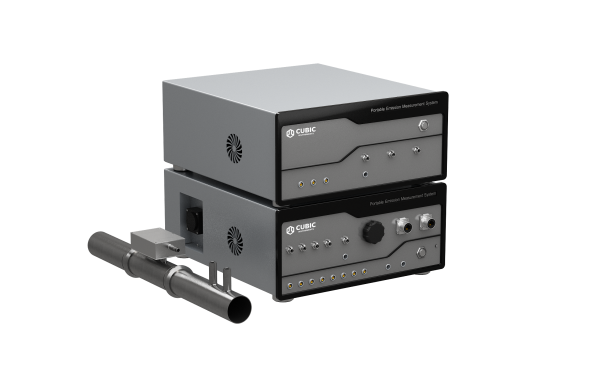

During vehicle development stages, or for final performance evaluation, certification, and COP testing, the automotive developer and manufacturer needs advanced emission measurement system solution for emission validation, Cubic develops complete emission measurement system solutions include the constant volume sampler (CVS) for diluted exhaust gases testing, emission gases measurement system, particle number (PN) measurement system, particle matter (PM) measurement system, portable emission measurement system (PEMS), etc, adopting high-precision hydrogen flame ionization detection (HFID) technology for superior THC&CH4 measurements and advanced ultraviolet differential absorption spectroscopy (UV-DOAS) technology for direct NOx concentration measurement without the need for NOx converters, combined with non-dispersive infrared (NDIR) technology and long-lifetime electrochemical sensor technology (ECD), Cubic’s solution delivers exceptional accuracy in measuring critical emissions parameters, including THC&CH4, NOx, CO, CO2 and O2 concentrations for both diluted and raw exhaust gases.
The OEMS and testing agencies need to implement Real Driving Emission (RDE) tests to evaluate engine emissions under normal driving conditions, and Worldwide Harmonized Light-duty Test Procedure (WLTP) to ensure the engine production testing and type approval certification in the lab, Cubic helps the OEMs and testing agencies select suitable emission measurement solution according to different testing methods regulated by EURO 6 (VI) standard and upcoming EURO 7 (VII) standard.
| Applications | Model | CO+CO2+HC | NO | NO2 | NOx | O2 | THC+CH4 | NH3+N2O | Smoke | PN | PM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NDIR | Micro-flow NDIR/ECD | NDUV | UV/CLD | ECD | FID | TDLAS | IR | DC/CPC | Weighting | ||
| PTI Check of I&M Stations | Gasboard-2000 | ||||||||||
| Gasboard-2100 | |||||||||||
| Gasboard-2200 | |||||||||||
| Gasboard-2300 | |||||||||||

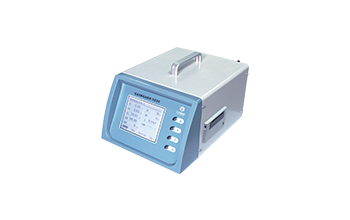

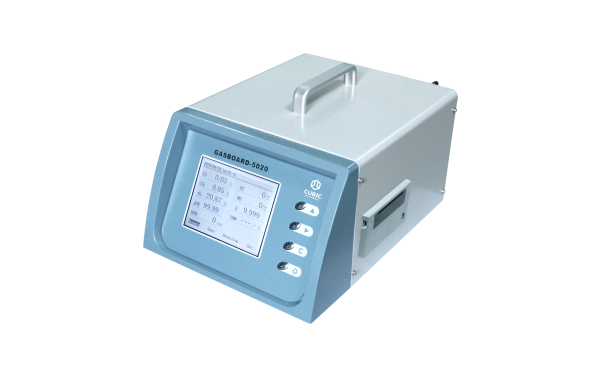

| Gasboard-5020 | |||||||||||
| Gasboard-5260 | |||||||||||

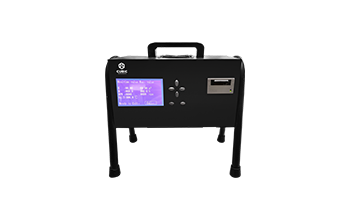

| Gasboard-6050 | |||||||||||
| Gasboard-6200 | |||||||||||

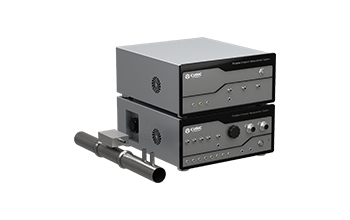

| Emission Testing for Vehicle Development& Certification | Gasboard-9805 | ||||||||||
| Gasboard-9801 | |||||||||||
| Gasboard-9802 |
