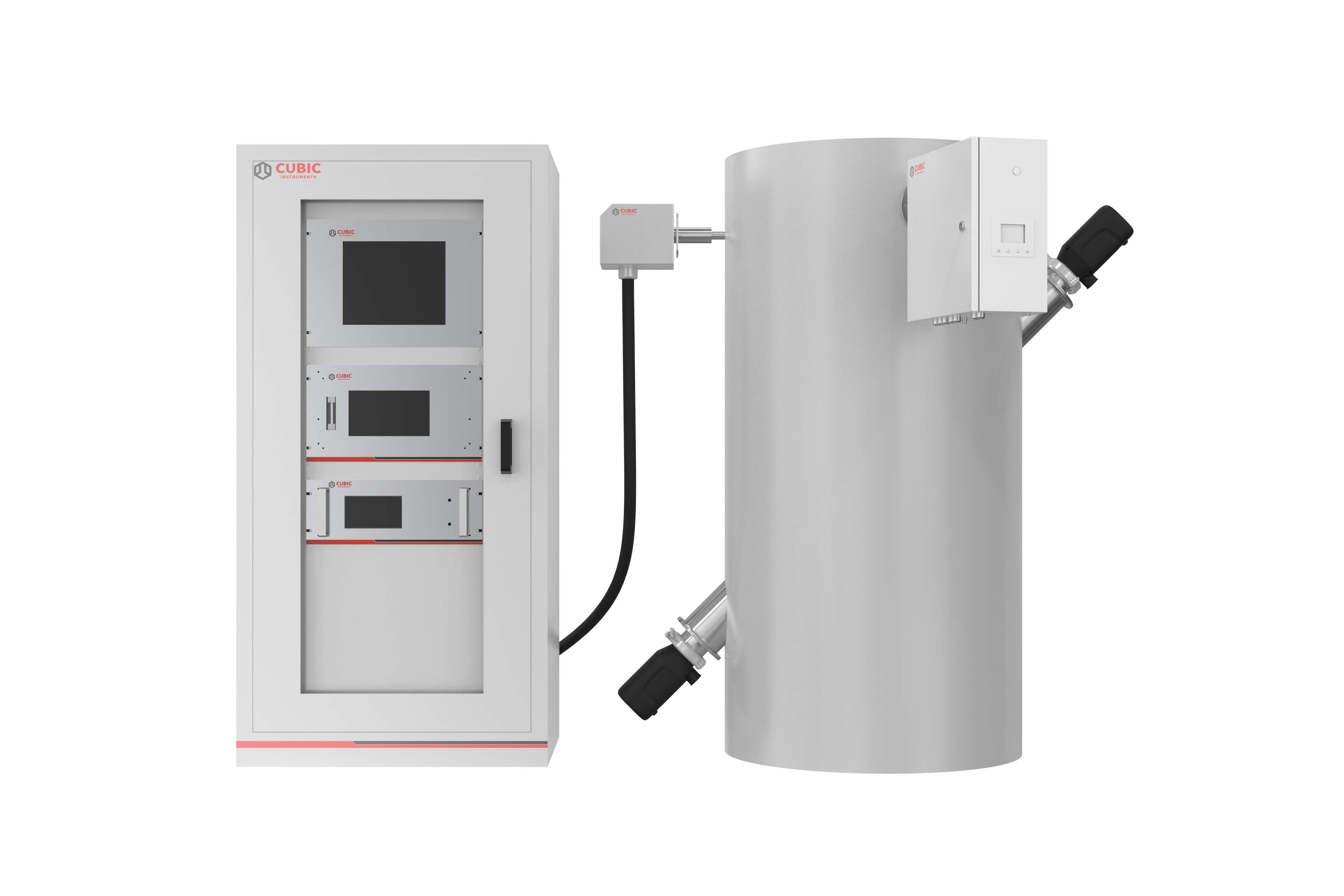

Hot-Wet Continuous Emission Monitoring System (CEMS)

Gasboard-9051HW

Gasboard-9051HW is an extractive hot-wet gas analysis system designed for continuous emission monitoring of stationary pollution sources. The system utilizes UV-DOAS and zirconia technologies to measure SO2, NO, NO2, H2O, and O2 concentrations, and performs continuous monitoring of particulate matter, flow velocity, temperature, pressure, and humidity in the flue gas stream. It adopts hot-wet sampling method to maintain high-temperature conditions throughput the gas path, effectively preventing condensation and preserving reactive or water-soluble components such as SO2, NH3, and HCL to ensure high measurement accuracy. The system supports real-time data visualization, automatic calibration, and long-term data storage through an integrated industrial PC and display interface. Measurement data can be transmitted via PSTN, GPRS, or CDMA networks for remote supervision and regulatory compliance.

Application areas: Oil and gas, metallurgy, fertilizer industry, power plants, waste incinerators, paper mills, glass manufacturing, cement industries, and other industrial emission sources.
Optional integration: TDLAS analyzers enable extended monitoring capabilities for CO, CH4, CO2, H2S, NH3, HCl, and HF based on specific application requirements.

Product Inquiry

Send Email to Us

Features

1. Advanced Hot-Wet Sampling Method
• Full-path heating system: Maintains constant temperature (120-190°C adjustable) throughout entire gas pathway including sampling lines, gas chamber, and internal piping
• Condensation-free measurement: Preserves water-soluble and reactive components (NH3, HCl, SO2) in original state for accurate measurement
• Direct high-temperature sampling: Analyzes flue gas at original temperature and humidity without cooling or drying processes

2. Superior Multi-Component Analysis
• Simultaneous measurement: SO2, NOx (NO+NO2), O2, H2O
• Expandable measurement capability: Optional integration with TDLAS analyzer for CO, CO2, H2S, HCl, NH3 monitoring

3. Robust Design with No Moving Parts
• Vibration-resistant: High-temperature UV optical system with no mechanical components in optical path
• Long-term stability: Eliminates mechanical wear and drift for consistent performance
• Long life-time: Robust design ensures extended operation lifespan

4. Simplified Operation & Integration
• No complex pretreatment: No condensation equipment, drainage systems, or cooling devices required

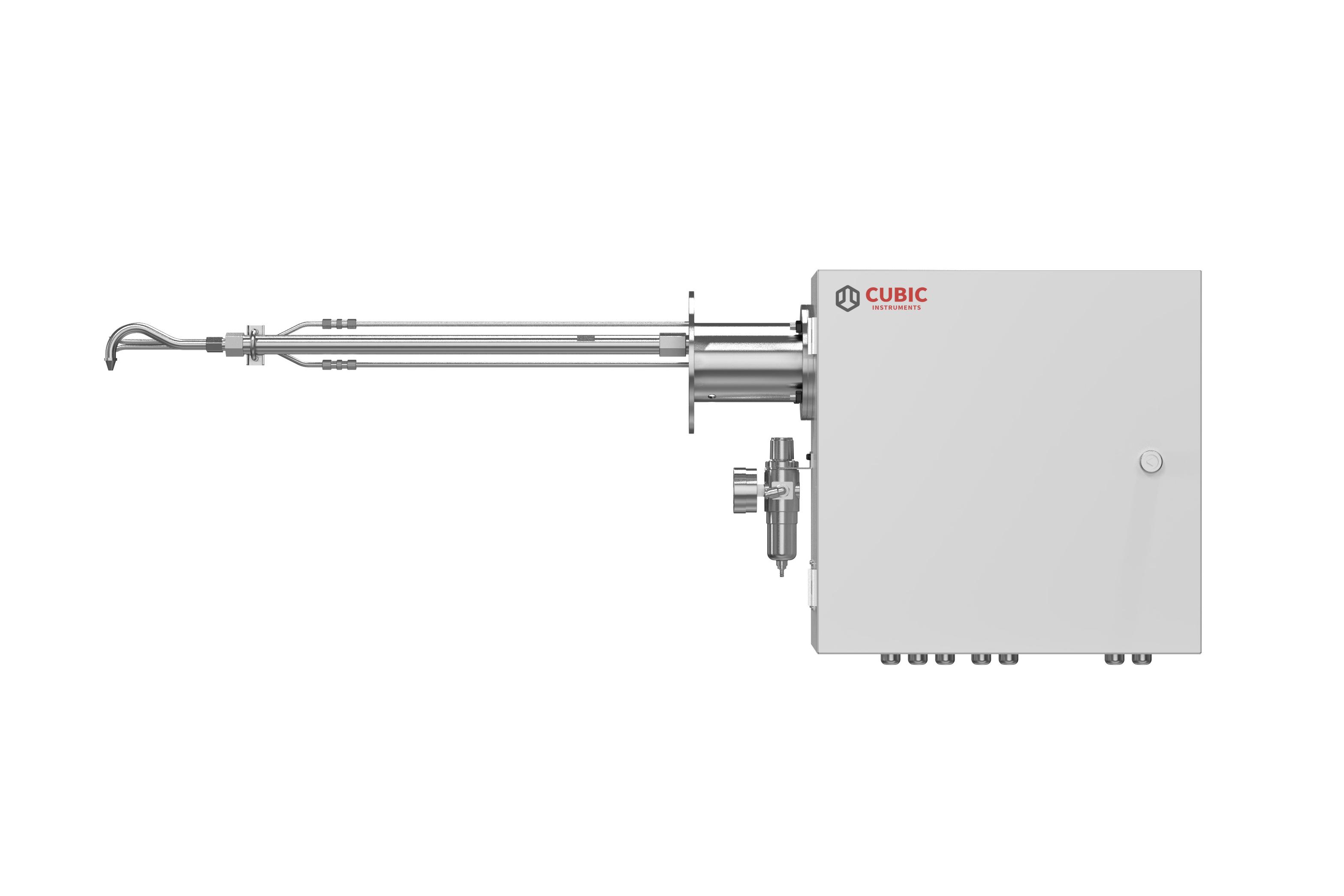

• Easy integration: Built-in filter, high-temperature sampling pump, and heated line interface allow direct connection to the sampling probe and heated lines

5. Advanced Anti-Fouling Protection
• Crystal-free operation: Prevents salt precipitation and system blockage
• Corrosion-resistant: Eliminates condensed water and acid formation

6. Intelligent Automation Features
• Automatic calibration: Programmable calibration schedules with optional linearity verification
• Real-time data processing: Integrated industrial PC with comprehensive monitoring interface
• Flexible connectivity: Multiple communication protocols for seamless data transmission

Specifications

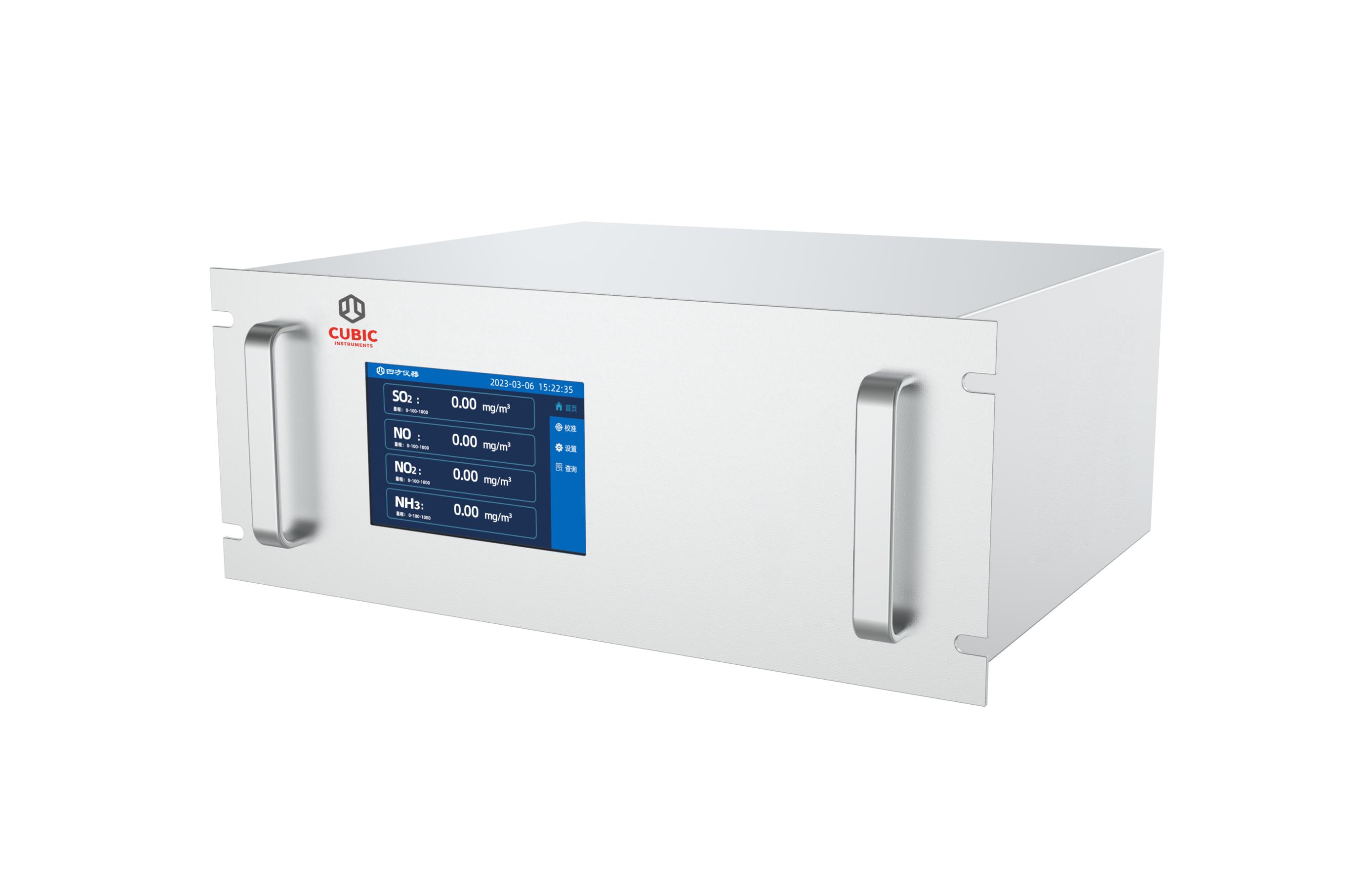

Analyzer
Sampling Method	Hot & Wet
Gas & Range	NO: 0-100 mg/m3 (UV-DOAS) NO2: 0-100 mg/m3 (UV-DOAS) SO2: 0-100 mg/m3 (UV-DOAS) O2: 0-25% (Zirconia) H2O: 0-40% (Zirconia) (Range can be customized)
Principle	UV-DOAS, Zirconia
Resolution	SO2/NO/NO2: 0.01mg /m3 O2/H2O: 0.01%
Linear Error	SO2, NO, NO2±2%FS, O2, H2O: ±2%FS
Repeatability	≤1%
Response Time	≤60sec @ T90
Zero Drift	≤2%F.S./24h; ≤3%F.S./7d
Span Drift	≤2%F.S./24h; ≤3%F.S./7d
Warm-up Time	60min
Gas Chamber Constant Temperature	120℃-190℃ (can be set)
Power Supply	AC220V±10%
Ambient Temperature	(-10~40)℃
Communication	RS-232/RS-485
Analyser Cabinet
Housing	528.5482.6266.7mm
Display	11-inch touch screen
System
One-stop Solution	Can add data acquisition unit, dust meter, flow meter
Calibration	Automatic calibration
Interface	4-20mA, R485/232, further on request
Inputs	4-20mA, R485/232
Output	Analog output: 4...20 mA; Digital output: failure, maintenance, maintenance request, measuring range switch-over etc.

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
