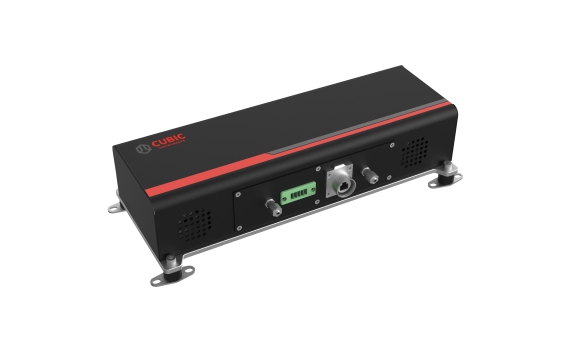

Quantum Cascade Lasers N2O Sensor

Gasboard-2522
Gasboard-2522 is a high-precision N2O gas sensor based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) and employing a quantum cascade laser (QCL) source. It is designed for highly selective and sensitive N2O measurement in automotive exhaust emission monitoring under the latest Euro 7 performance requirements. Gasboard-2522 integrates a high-quality optical probe with a proprietary gas cell to deliver high measurement accuracy, high sensitivity, strong resistance to cross-gas interference, and long-term stable operation. Featuring a modular design, Gasboard-2522 supports easy installation and system integration. Calibration and configuration are available via an RS485 communication interface.
Applications include automotive exhaust emission monitoring, environmental monitoring, and laboratory research.
Segment: Automobile Exhaust Gas Analyzer
Division: OEM Gas Bench
Show More
pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico1.png pd_ico1_h.png Product Inquiry pd_ico2.png pd_ico2_h.png Send Email to Us

Features

  • QCL-based narrow-band laser absorption spectroscopy with ultra-high sensitivity for N2O measurement, resistant to interference from other gases, humidity, and particulate matter.
  • Ultra-fast response time of ≤ 3 seconds for real-time monitoring.
  • Full-scale linear digital output for consistent, repeatable, and traceable measurement.
  • High-performance optical probe for stable operation and long service life.
  • Modular design for easy system integration and future upgrades.

Specifications

Principle
 Tunable diode laser absorption spectroscopy  (TDLAS)
Measurement
 N2O
Range
 0~1000ppm
Accuracy
 ±0.3%FS or 2% reading
Zero Drift
 <2ppm (within 2 hours)
Resolution
 0.1ppm
Response Time T90
 T10~T90＜3S
Constant Temperature
 60℃
Warm-up Time
 ＜30min
Operating Temperature
 （-7 ~ 50）℃
Operating Humidity
 0~98%RH (non-condensing)
Operating Voltage
 12V±5%
Operating Current
 ＜8A
Communication
 RS-485
Dimension
 L*W*H:372*155*81mm (excluding air nozzle & foot pad)
Storage Condition
 -40 ~ 85℃; 0~98%RH (non-condensing)

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.
