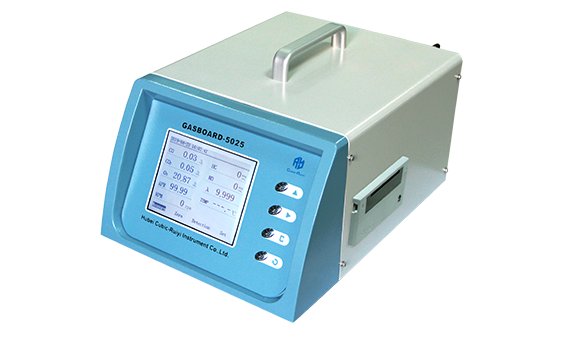

Gasboard-5025
Automobile Emission Gas Analyzer

Gasboard-5025 emission gas analyzer is designed for measuring the emissions from all gasoline, LPG or CNG vehicles, it is developed based on dual beam non-dispersion infrared (NDIR) principle to measure CO, CO2, HC three gases, and one zirconia sensor to measure O2 and NOx two gases. The testing reports can be printed by built-in printer. Gasboard-5025 is equivalent with OIML R99 class 0 standard, very suitable for cars, motorcycles, and other light duty, heavy duty vehicles exhaust inspection.


Applications

• Vehicle inspection station
• Vehicle maintenance station
• Automotive workshop
• Environmental protection institution
• University and laboratory research

Segment: Automobile Exhaust Gas Analyzer
Division: Exhaust Gas Analyzer
Features
  • One Zirconia sensor measures O2 & NOx two gases simultaneously. Alternative to electrochemical O2 & NOx sensors, with longer lifetime and less maintenance cost.
  • CO, HC compensation on O2 to avoid interferences.
  • OIML R99 class 00 standard compliance.
  • NDIR gas bench with regulated temperature system, high accuracy, better stability.
  • Self-developed & manufactured sensors ensures stable supply and fast delivery.
  • Cleanable NDIR gas chamber, easy maintenance.
  • Built-in printer option.
Specifications
Measurements CO2, CO, HC, optional O2, NOx gases.
Technology NDIR Zirconia
Measuring  range CO2 CO HC O2 NOx
0-20% 0-10%
(*0-15% optional)
0-9999ppm
(*0-20000ppm  optional)
0-25% 0-3000ppm
Resolution 0.01% 0.01% 1ppm 0.01% 1ppm
Error rel. ±4% ±3% ±5% ±3% ±4%
(which ever is greater) Abs. ±0.4% ±0.03% ±10ppm ±0.1% ±25ppm
Warm-up time 10 minutes
Response time (T90) 10 seconds (NDIR) , 30 seconds (Zirconia)
Display LCD display
Power supply 110V-220V±10%   50Hz ±1Hz
Operation Temperature 0~50℃
Dimension 260×180×360mm
Flow rate 0.7-1.2L/min
Weight 6kg

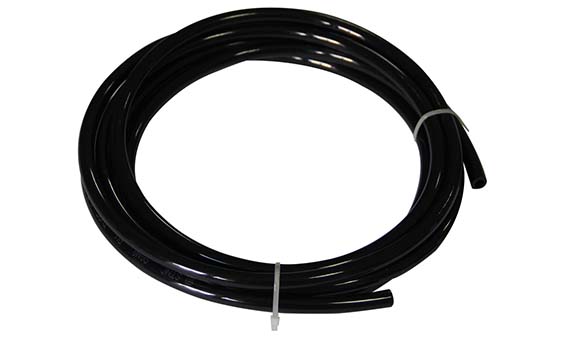

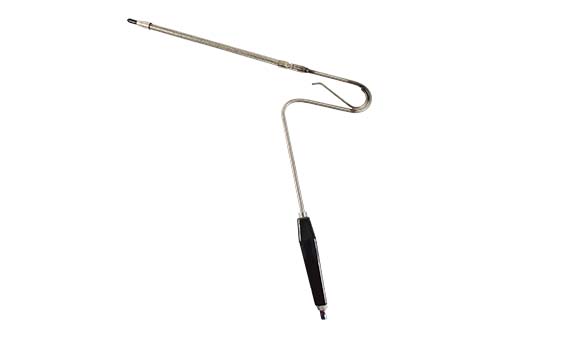

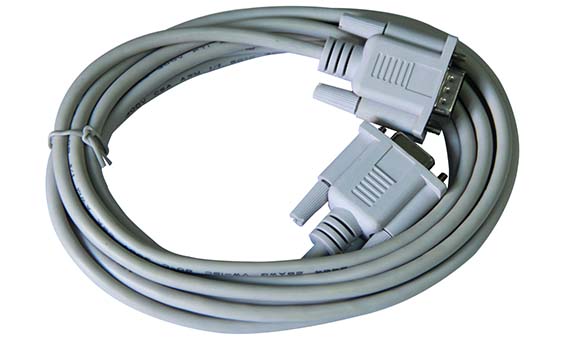

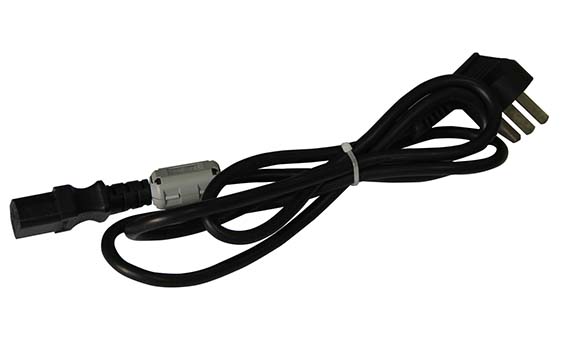

Standard accessories Sampling pipe and probe, standby filters, RS-232 cable, power cable
Options Built-in printer, RPM sensor, Oil temperature sensor

For more details, please feel free to contact our sales: info@gasanalyzer.com.cn.
